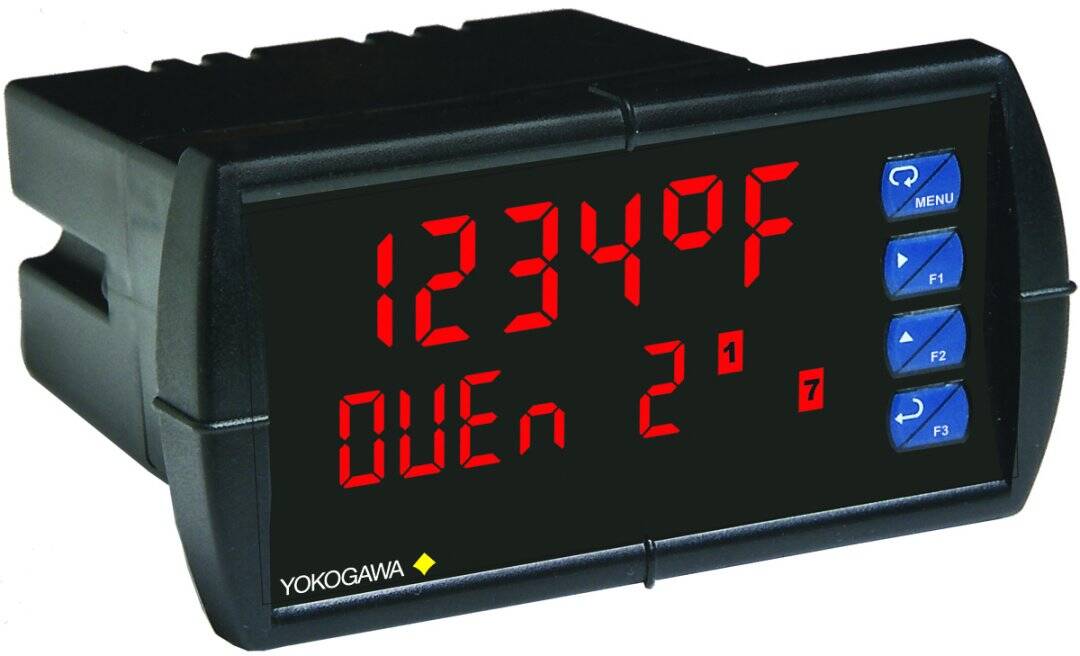

Yokogawa Dual Display Temperature Meters – PROPLUS YPP7000
Description
The PROPLUS YPP7000 meter boasts specifications and functionality that clearly makes it one of the most advanced temperature meters available. Its dual-line 6-character display, function keys, and optional expansion modules are only a few of the features you will find on the YPP7000. It accepts many thermocouple types and RTDs. It can be configured to have either a 1° or 0.1° display resolution on any type of sensor input. The lower display makes configuration simpler. The display itself is quite configurable. There are many relay functions for up to 8 relays; including an Interlock Relay function. The 4-20 mA output can represent up to 12 different parameters/variables. This makes the YPP7000 one of the most versatile meters on the market.
- J, K, T, E, R, S, B, N, C Thermocouples
- 100 or 1000Ω Pt, 10Ω Cu, 120Ω Ni RTDs
- 1° or 0.1° Resolution
- Averages up to 10 RTD Sensors
- Automatic Cold Junction Compensation
- Sensor Break Detection
| Item # | Input | Power | Display | Options |
|---|---|---|---|---|
| YPP7000-6R3 | Temperature T/C & RTD | 85-265 VAC | Standard Red | 4-20mA ouptut |
| YPP7000-6R5 | Temperature T/C & RTD | 85-265 VAC | Standard Red | 2 relays & 4-20mA out |
| YPP7000-6R7 | Temperature T/C & RTD | 85-265 VAC | Standard Red | 4 relays & 4-20mA out |
| YPP7000-7R2 | Temperature T/C & RTD | 12/24 VDC | Standard Red | 2 relays |
| YPP7000-7R3 | Temperature T/C & RTD | 12/24 VDC | Standard Red | 4-20mA ouptut |
| YPP7000-7R4 | Temperature T/C & RTD | 12/24 VDC | Standard Red | 4 relays |
| YPP7000-7R5 | Temperature T/C & RTD | 12/24 VDC | Standard Red | 2 relays & 4-20mA out |
| YPP7000-6R0 | Temperature T/C & RTD | 85-265 VAC | Standard Red | None |
| YPP7000-6R2 | Temperature T/C & RTD | 85-265 VAC | Standard Red | 2 relays |
| YPP7000-7R7 | Temperature T/C & RTD | 12/24 VDC | Standard Red | 4 relays & 4-20mA out |
| YPP7000-6R4 | Temperature T/C & RTD | 85-265 VAC | Standard Red | 4 relays |
| YPP7000-6H2 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | 2 relays |
| YPP7000-6H3 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | 4-20mA ouptut |
| YPP7000-6H4 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | 4 relays |
| YPP7000-6H5 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | 2 relays & 4-20mA out |
| YPP7000-6H7 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP7000-7H2 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | 2 relays |
| YPP7000-7H4 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | 4 relays |
| YPP7000-7H3 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | 4-20mA ouptut |
| YPP7000-7H5 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | 2 relays & 4-20mA out |
| YPP7000-7H7 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP7000-7R0 | Temperature T/C & RTD | 12/24 VDC | Standard Red | None |
| YPP7000-6H0 | Temperature T/C & RTD | 85-265 VAC | Sunlight Bright red | None |
| YPP7000-7H0 | Temperature T/C & RTD | 12/24 VDC | Sunlight Bright red | None |
