Weschler AC Current Transformers, > 3″ Window Size

Description

click to view larger image

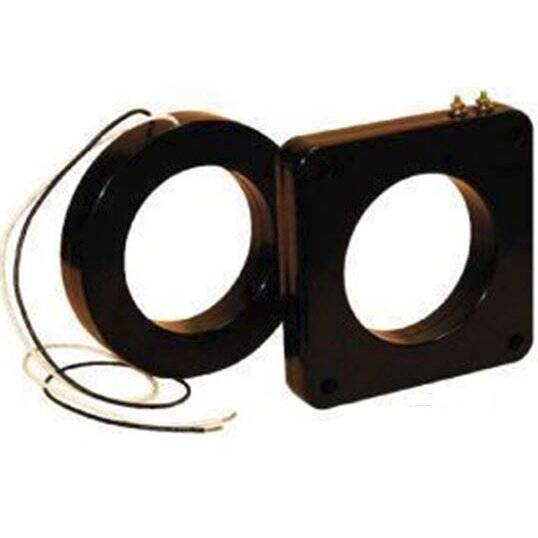

Weschler Metering Current Transformers, Model 8 (3.25″ Dia Window) & Model 170 (4.25″ Dia Window). 200 to 4000 Amperes with 5A output.

1. Solid Core
2. 0.6kV Insulation Class, BIL 10kV Full Wave
3. 50-400 Hz
4. 8-32 Studs or 24″ Leads
5. UL Recognized (US/Canada)

Model 8SHT, 8RL: 200A-4000A
Model 170SHT, 170RL:  200A-4000A

T suffix =  terminals, L suffix = leads

Order mounting bracket kit 0221B00183 separately for model 8SHT.

Order mounting bracket kit 0221B00187 separately for model 170SHT

Catalog Page 093                 Series 8 Datasheet           Series 170 Datasheet
