Weschler AC Current Transformers, Window Size 2″ – 3″
Description

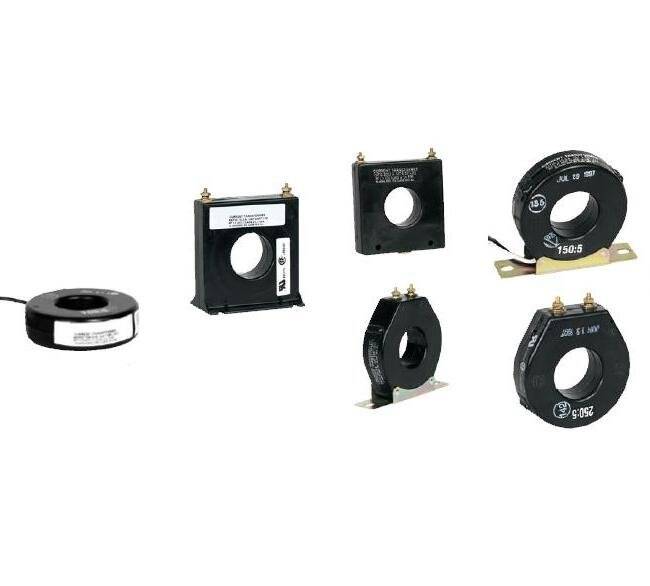

Weschler Metering Current transformers Models 7 (2.5” window dia), 76 (3” window dia) and 180 (2.5” window dia) for use with ammeters, wattmeters, and cross current compensation. Available in ranges from 50 to 2000 amperes with a 5A output.
- Model 7SFT, 7SHT, 7RT, 7RBT, 7RL, 7RBL: 100A-1600A
- Model 76SFT, 76SHT, 76RT, 76RBT, 76RL, 76RBL: 200A-2000A
- Model 180RL, 180SHT: 50A-2000A
Features
- Solid Core
- 0.6kV Insulation Class, BIL 10kV Full Wave
- 50-400 Hz
- 8-32 Studs or 24″ Leads
- UL Recognized (US/Canada)
T suffix = terminals, L suffix = leads
Catalog Page 093 Series 7 specs Series 76 specs Series 180 specs
