Description

click to view larger image

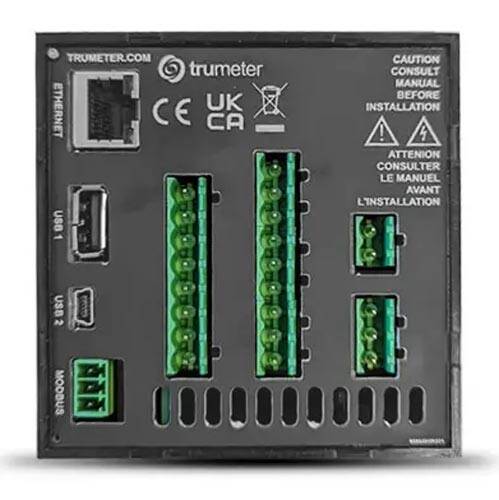

Trumeter Vista Touch Panel Meters have a large, full-color graphic display and touchscreen user interface. These 1/4 DIN meters include Modbus RTU (RS485) and TCP/IP (Ethernet) communications, plus a USB port for setup and data storage. Two relay outputs, two digital inputs, and one analog output are standard. Vista Touch Meters offer built-in remote monitoring with a free subscription to Trumeter Cloud. Models are optimized for power and flow measurements.

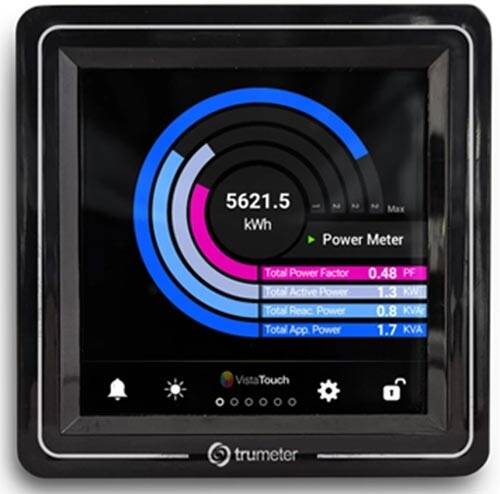

Vista Touch Power is designed for single (1P2W), split (1P3W) and three-phase (3P3W, 3P4W)  networks.

• Connect up to 600V & 5A direct
• Programmable CT and PT ratios
• 1% accuracy across the input range
• Measure active (W), reactive (VAr), & apparent (VA) power

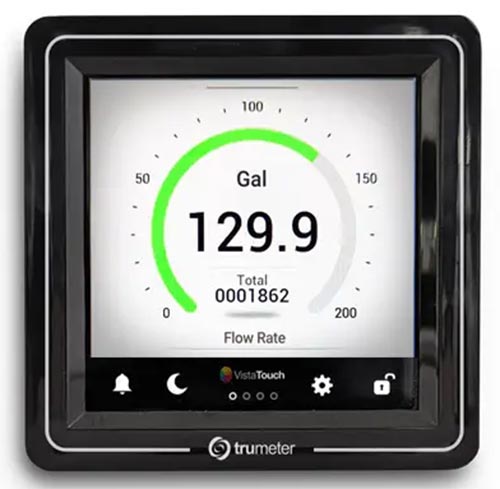

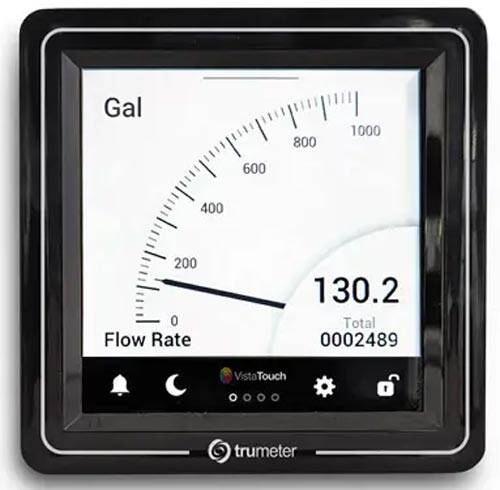

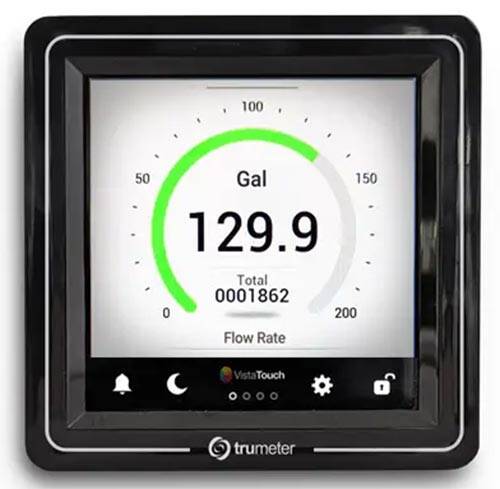

Vista Touch Flow is a flow rate indicator and totalizer.

• Selectable display configurations
• 1% accuracy across the input range
• 24Vdc excitation output (50mA)

VistaTouch_Flow_datasheet

VistaTouch_Power_datasheet
