UT75A Controller – Yokogawa
Description

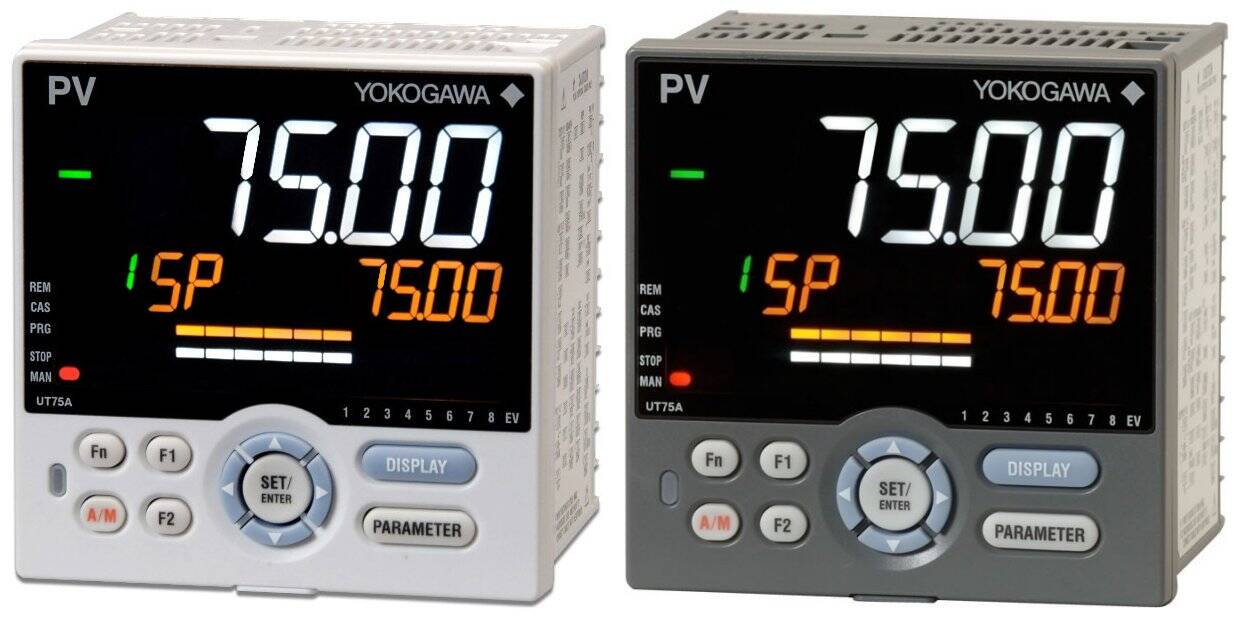

The Yokogawa UT75A digital indicating controllers employ an easy-to-read, 14-segment color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT75A also support open networks such as Ethernet communication
The UT75A is equipped with a multitude of functions including universal I/O, eight control modes (dual-loop control, cascade control, etc) and program pattern operation as standard. PID control, heating/cooling control, feed-forward control, etc. are selectable. A ladder sequence function is included as standard (requires LL50A Software Package to implement). The ladder logic capacity is 1000 ladder steps for those wanting to replace larger PLC systems. The ladder logic can support custom ladder commands created by the user. The UT75A is available with various built-in open network functions such as Ethernet.
The Yokogawa UT75A is 1/4 DIN and just 65 mm deep for thin panel mounting. The front panel is IP66/NEMA 4 dust and waterproof compliant. The UT75A is protected by 3-year warranty.
- 14-segment, active color LCD display
- Easy to operate Navigation keys
- Ladder sequence function is included as standard (requires LL50A Software Package to implement)
- Dedicated LL50A Parameter Setting Software (sold separately)
- Various built-in open network functions such as Ethernet are available
- Program pattern consists of up to 20 segments
- 2-loop program pattern can be operated
- Easy to switch between recipes with a PLC
- Quick setting function
- Equipped with a multitude of functions:
- Universal I/O, eight control modes (dual-loop control, cascade control, etc) and program pattern operation are included as standard
- Selectable PID control, heating/cooling control, feed forward control
- 3-year Warranty
- RoHS and WEEE compliant
- IP66/NEMA 4 compliant dust and waterproof front panel
Optional suffix codes
/DC Power supply 24 V AC/DC
/CT Coating
/CP Carbon pontential calculation function
Show Advanced Filters
products found
| Item # | Control | Other Functions | Network Options | Case Color |
|---|---|---|---|---|
| UT75A-502-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-503-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-503-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-504-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-115-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-510-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Gray |
| UT75A-510-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-511-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-505-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-502-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
| UT75A-501-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-501-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-500-10-0 | Dual-loop type | 5 additional DI, 5 additional DO | None | Light Gray |
| UT75A-115-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-114-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-113-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-511-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-522-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | Ethernet (with serial gateway function) | Light Gray |
| UT75A-114-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-500-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-520-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | None | Light Charcoal Gray |
| UT75A-113-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-504-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-525-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-525-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-524-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-524-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-523-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-523-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | CC-Link (with Modbus master function) | Light Gray |
| UT75A-521-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-521-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | RS-485 & 5 additional Dis | Light Gray |
| UT75A-512-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
| UT75A-520-10-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | None | Light Gray |
| UT75A-515-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-515-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-514-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-514-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-513-10-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-513-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-512-11-0 | Dual-loop type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-522-11-0 | Dual-loop type | Remote inputs 2 additional aux. analog, RS485, 2 additional DI | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-003-11-0 | Standard Type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-013-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-013-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-012-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-011-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-012-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
| UT75A-011-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-010-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-010-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Gray |
| UT75A-014-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-004-10-0 | Standard Type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-005-11-0 | Standard Type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-002-11-0 | Standard Type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-003-10-0 | Standard Type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-002-10-0 | Standard Type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
| UT75A-001-11-0 | Standard Type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-001-10-0 | Standard Type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-000-11-0 | Standard Type | 5 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-000-10-0 | Standard Type | 5 additional DI, 5 additional DO | None | Light Gray |
| UT75A-505-11-0 | Dual-loop type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-112-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-005-10-0 | Standard Type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-111-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-112-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
| UT75A-004-11-0 | Standard Type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-014-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-111-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-110-11-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-110-10-0 | Position proportional type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | None | Light Gray |
| UT75A-105-10-0 | Position proportional type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-105-11-0 | Position proportional type | 5 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-104-11-0 | Position proportional type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Charcoal Gray |
| UT75A-104-10-0 | Position proportional type | 5 additional DI, 5 additional DO | PROFIBUS-DP (with Modbus master function) | Light Gray |
| UT75A-103-10-0 | Position proportional type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Gray |
| UT75A-103-11-0 | Position proportional type | 5 additional DI, 5 additional DO | CC-Link (with Modbus master function) | Light Charcoal Gray |
| UT75A-100-10-0 | Position proportional type | 5 additional DI, 5 additional DO | None | Light Gray |
| UT75A-015-10-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Gray |
| UT75A-100-11-0 | Position proportional type | 5 additional DI, 5 additional DO | None | Light Charcoal Gray |
| UT75A-015-11-0 | Standard Type | Remote inputs 1 additional aux. analog, RS485, 1 additional DI, 5 additional DO | DeviceNet (with Modbus master function) | Light Charcoal Gray |
| UT75A-101-10-0 | Position proportional type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Gray |
| UT75A-101-11-0 | Position proportional type | 5 additional DI, 5 additional DO | RS-485 & 5 additional Dis | Light Charcoal Gray |
| UT75A-102-11-0 | Position proportional type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Charcoal Gray |
| UT75A-102-10-0 | Position proportional type | 5 additional DI, 5 additional DO | Ethernet (with serial gateway function) | Light Gray |
