UP55A Controller- Yokogawa
Description

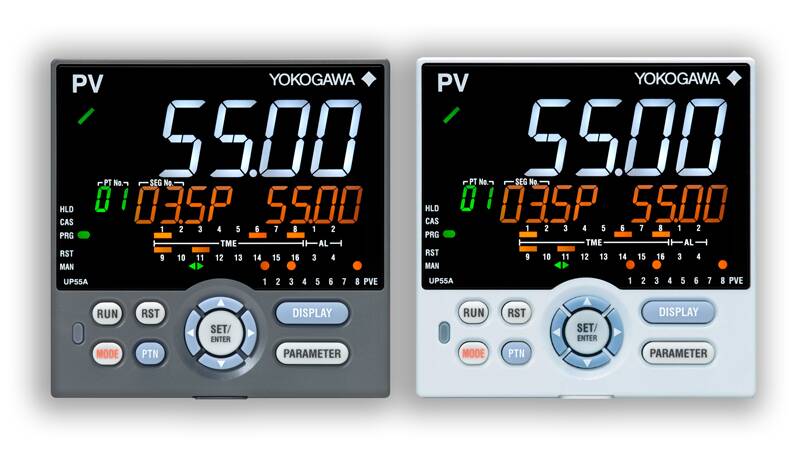

The UP55A is a newly-released 1/4 DIN-sized program controller that provides up to 30 program patterns, and simultaneous monitoring of 8 PV events, 16-time events, and 8 alarms. It has a fast-forwarding of program operation, used to check the program pattern settings and the program pattern-2 retransmission serves as a program pattern generator. The ladder sequence control function can replace a PLC required by the application. The Sequence control and PID control can be performed simultaneously in monitoring and controlling external machinery such as Lamps, switches, timers and easily solve digital input/output logic functionality.
Applications
Include the measurement, display, and control of temperature, pressure, and flow rate in research and development facilities and manufacturing operations, including heat treatment, washing and sterilizing.
Advanced Control
- 5 built-in control functions and algorithms
- Ladder sequence control
- Fuzzy logic control
Optional suffix codes
/DR Additional direct input (TC and 3-wire/4-wire RTD)
/HA Heater break alarm
/DC Power supply 24 V AC/DC
/CT Coating
Show Advanced Filters
products found
| Item # | Controls | Extra Functions | Network Options | Case |
|---|---|---|---|---|
| UP55A-242-10-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | RS-485 | Light Gray |
| UP55A-010-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-000-11-00 | Standard Type | None | Ethernet | Dark Gray |
| UP55A-001-11-00 | Standard Type | None | None | Dark Gray |
| UP55A-002-11-00 | Standard Type | None | Ethernet | Dark Gray |
| UP55A-011-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Dark Gray |
| UP55A-012-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-020-11-00 | Standard Type | RS-485 communication | RS-485 | Dark Gray |
| UP55A-021-11-00 | Standard Type | RS-485 communication | None | Dark Gray |
| UP55A-030-11-00 | Standard Type | 10 additional DOs | Ethernet | Dark Gray |
| UP55A-200-10-00 | Heating / cooling type | None | RS-485 | Light Gray |
| UP55A-022-11-00 | Standard Type | RS-485 communication | Ethernet | Dark Gray |
| UP55A-241-10-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-240-10-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-230-10-00 | Heating / cooling type | 10 additional DOs | RS-485 | Light Gray |
| UP55A-222-10-00 | Heating / cooling type | RS-485 communication | None | Light Gray |
| UP55A-221-10-00 | Heating / cooling type | RS-485 communication | None | Light Gray |
| UP55A-220-10-00 | Heating / cooling type | RS-485 communication | Ethernet | Light Gray |
| UP55A-212-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UP55A-211-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UP55A-210-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Light Gray |
| UP55A-040-11-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Dark Gray |
| UP55A-122-11-00 | Position proportional type | RS-485 communication | Ethernet | Dark Gray |
| UP55A-201-10-00 | Heating / cooling type | None | Ethernet | Light Gray |
| UP55A-141-10-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-202-10-00 | Heating / cooling type | None | RS-485 | Light Gray |
| UP55A-241-11-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Dark Gray |
| UP55A-242-11-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | RS-485 | Dark Gray |
| UP55A-141-11-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | Ethernet | Dark Gray |
| UP55A-240-11-00 | Heating / cooling type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | Ethernet | Dark Gray |
| UP55A-230-11-00 | Heating / cooling type | 10 additional DOs | RS-485 | Dark Gray |
| UP55A-222-11-00 | Heating / cooling type | RS-485 communication | None | Dark Gray |
| UP55A-221-11-00 | Heating / cooling type | RS-485 communication | Ethernet | Dark Gray |
| UP55A-220-11-00 | Heating / cooling type | RS-485 communication | RS-485 | Dark Gray |
| UP55A-202-11-00 | Heating / cooling type | None | None | Dark Gray |
| UP55A-212-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-211-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-210-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-041-11-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Dark Gray |
| UP55A-201-11-00 | Heating / cooling type | None | Ethernet | Dark Gray |
| UP55A-120-11-00 | Position proportional type | RS-485 communication | RS-485 | Dark Gray |
| UP55A-142-11-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Dark Gray |
| UP55A-130-11-00 | Position proportional type | 10 additional DOs | RS-485 | Dark Gray |
| UP55A-140-10-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-140-11-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | Ethernet | Dark Gray |
| UP55A-121-11-00 | Position proportional type | RS-485 communication | Ethernet | Dark Gray |
| UP55A-130-10-00 | Position proportional type | 10 additional DOs | RS-485 | Light Gray |
| UP55A-112-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Dark Gray |
| UP55A-111-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Dark Gray |
| UP55A-110-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UP55A-100-11-00 | Position proportional type | None | Ethernet | Dark Gray |
| UP55A-101-11-00 | Position proportional type | None | None | Dark Gray |
| UP55A-042-11-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | RS-485 | Dark Gray |
| UP55A-102-11-00 | Position proportional type | None | None | Dark Gray |
| UP55A-020-10-00 | Standard Type | RS-485 communication | RS-485 | Light Gray |
| UP55A-102-10-00 | Position proportional type | None | Ethernet | Light Gray |
| UP55A-200-11-00 | Heating / cooling type | None | None | Dark Gray |
| UP55A-021-10-00 | Standard Type | RS-485 communication | None | Light Gray |
| UP55A-022-10-00 | Standard Type | RS-485 communication | Ethernet | Light Gray |
| UP55A-030-10-00 | Standard Type | 10 additional DOs | Ethernet | Light Gray |
| UP55A-040-10-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-012-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UP55A-041-10-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-101-10-00 | Position proportional type | None | RS-485 | Light Gray |
| UP55A-110-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UP55A-111-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UP55A-120-10-00 | Position proportional type | RS-485 communication | None | Light Gray |
| UP55A-122-10-00 | Position proportional type | RS-485 communication | RS-485 | Light Gray |
| UP55A-112-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UP55A-121-10-00 | Position proportional type | RS-485 communication | Ethernet | Light Gray |
| UP55A-002-10-00 | Standard Type | None | Ethernet | Light Gray |
| UP55A-042-10-00 | Standard Type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | None | Light Gray |
| UP55A-001-10-00 | Standard Type | None | RS-485 | Light Gray |
| UP55A-010-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UP55A-000-10-00 | Standard Type | None | None | Light Gray |
| UP55A-011-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UP55A-100-10-00 | Position proportional type | None | Ethernet | Light Gray |
| UP55A-142-10-00 | Position proportional type | 3 additional aux. analog inputs, 2 Dls & 5 DOs | RS-485 | Light Gray |
