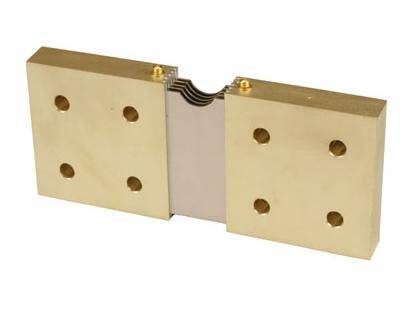

Type E – 1500 Through 2000 Amp DC Shunts – Empro
Description
Similar to type A and B except it has very large brass terminal blocks for heavy-duty use. Mostly used for higher currents when only one busbar is used. It also can be used with heavy-duty cables. Available in both 50Mv and 100Mv outputs in the 1500 to 6000 amp range it was designed for use where multiple leaf termination is not needed.
- 1500 to 2000 DC Amperes.
- Accuracy: 1/4%
- Recommended continuous operation: <2/3 rated current
Catalog-Page-90 Empro Type E Shunts
For better availability, see the equivalent Canadian Shunt Type A.
Show Advanced Filters
products found
| Item # | Amp | Type | Lenght (in.) | Width |
|---|---|---|---|---|
| E-1500-50 | 1500 | 50mV | 9.625 | 3.00 |
| E-2000-50 | 2000 | 50mV | 9.625 | 4.00 |
| E-1500-100 | 1500 | 100mV | 11.25 | 3.00 |
| E-2000-100 | 2000 | 100mV | 11.25 | 4.00 |
