CSI Type R – 1000 to 2000 Amp DC Shunts – Canadian Shunt
Description

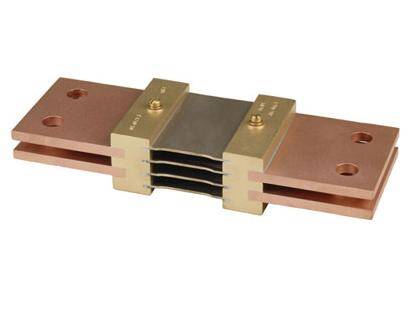

These Canadian Shunt Type R bus bar mounted shunts are available with 50mV or 100mV output at currents of 1000 to 2000 amps. Multiple 0.25 inch copper terminal blades spaced at 0.25 inch allow the shunt to be inserted in the bus bar.
- 1000 to 2000 DC Amps
- Accuracy: 1/4%
- Recommended continuous operation: <2/3 rated current
These shunts are equivalent to Empro Type C.
Show Advanced Filters
products found
| Item # | Amp | Type | Length (in.) | Width (in.) |
|---|---|---|---|---|
| R-1000-50 | 1000 | 50mV | 9.063 | 2.625 |
| R-1200-50 | 1200 | 50mV | 9.063 | 3.00 |
| R-1500-50 | 1500 | 50mV | 9.063 | 3.00 |
| R-2000-50 | 2000 | 50mV | 9.063 | 3.25 |
| R-1000-100 | 1000 | 100mV | 10.875 | 2.625 |
| R-1200-100 | 1200 | 100mV | 10.875 | 3.00 |
| R-1500-100 | 1500 | 100mV | 10.875 | 3.00 |
| R-2000-100 | 2000 | 100mV | 10.875 | 3.25 |
