CSI Type A – 1500 to 6000 Amp DC Shunts – Canadian Shunt
Description

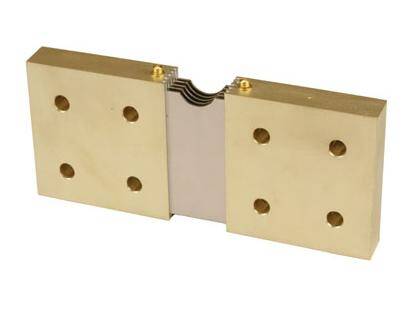

These Type A bus bar shunts have large brass terminal blocks for heavy-duty use. They are available with either 50mV or 100mV output in the 1500 to 6000 amp range. While designed for bus bar mounting, they can also be used with heavy cables. Use Canadian Shunt type K or type R where multiple leaf termination is needed.
- 1500 to 6000 DC Amps
- Accuracy: 1/4%
- Recommended continuous operation: <2/3 rated current
Canadian Shunt Type A replaces Empro Type E
Canadian_Shunt_Type_A_datasheet
Show Advanced Filters
products found
| Item # | Amp | Type | Lenght (in.) | Width |
|---|---|---|---|---|
| A-1500-50 | 1500 | 50mV | 9.62 | 3.00 |
| A-2000-50 | 2000 | 50mV | 9.62 | 4.00 |
| A-3000-50 | 3000 | 50mV | 9.62 | 4.00 |
| A-4000-50 | 4000 | 50mV | 9.62 | 5.00 |
| A-5000-50 | 5000 | 50mV | 9.62 | 5.00 |
| A-6000-50 | 6000 | 50mV | 9.62 | 5.00 |
| A-5000-100 | 5000 | 100mV | 11.25 | 5.00 |
| A-6000-100 | 6000 | 100mV | 11.25 | 5.00 |
| A-3000-100 | 3000 | 100mV | 11.25 | 4.00 |
| A-4000-100 | 4000 | 100mV | 11.25 | 5.00 |
| A-1500-100 | 1500 | 100mV | 11.25 | 3.00 |
| A-2000-100 | 2000 | 100mV | 11.25 | 4.00 |
