Description

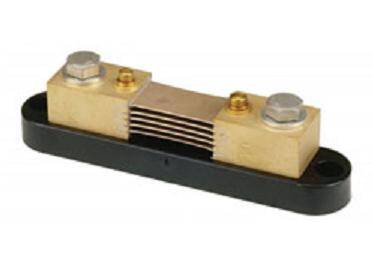

Weschler Type C DC Ammeter Shunts have an insulating base and are normally mounted to a switchboard panel or inside an enclosure. The base can be removed for busbar mounting. Input ranges available are 1 to 500 DC Amps with a 50mV or 100mV output.
- 1 to 500 DC Amperes.
- Accuracy: 1/4%
- Recommended continuous operation: <2/3 rated current
Size: 6.0″ x 1.25″
Mounting: 5.25″ C-C
Weschler Type C Shunts are equivalent to the Empro HA series and are recommended to replace those products.
Show Advanced Filters
products found
| Item # | Amp | Type | Price |
|---|---|---|---|
| C-15-100 | 15 | 100 mV | $45.91 |
| C-400-50 | 400 | 50 mV | $49.81 |
| C-250-100 | 250 | 100 mV | $49.97 |
| C-250-50 | 250 | 50 mV | $45.38 |
| C-150-100 | 150 | 100 mV | $45.91 |
| C-150-50 | 150 | 50 mV | $40.44 |
| C-1-100 | 1 | 100 mV | $53.30 |
| C-10-100 | 10 | 100 mV | $45.91 |
| C-200-50 | 200 | 50 mV | $40.44 |
| C-20-100 | 20 | 100 mV | $45.91 |
| C-2-50 | 2 | 50 mV | $40.44 |
| C-50-100 | 50 | 100 mV | $45.91 |
| C-5-100 | 5 | 100 mV | $45.91 |
| C-5-50 | 5 | 50 mV | $40.44 |
| C-2-100 | 2 | 100 mV | $45.91 |
| C-100-100 | 100 | 100 mV | $45.91 |
| C-300-50 | 300 | 50 mV | $45.38 |
| C-200-100 | 200 | 100 mV | $45.91 |
| C-10-50 | 10 | 50 mV | $40.44 |
| C-100-50 | 100 | 50 mV | $40.44 |
| C-300-100 | 300 | 100 mV | $49.97 |
| C-20-50 | 20 | 50 mV | $40.44 |
| C-500-100 | 500 | 100 mV | $49.97 |
| C-500-50 | 500 | 50 mV | $49.81 |
| C-50-50 | 50 | 50 mV | $40.44 |
| C-1-50 | 1 | 50 mV | $46.96 |
