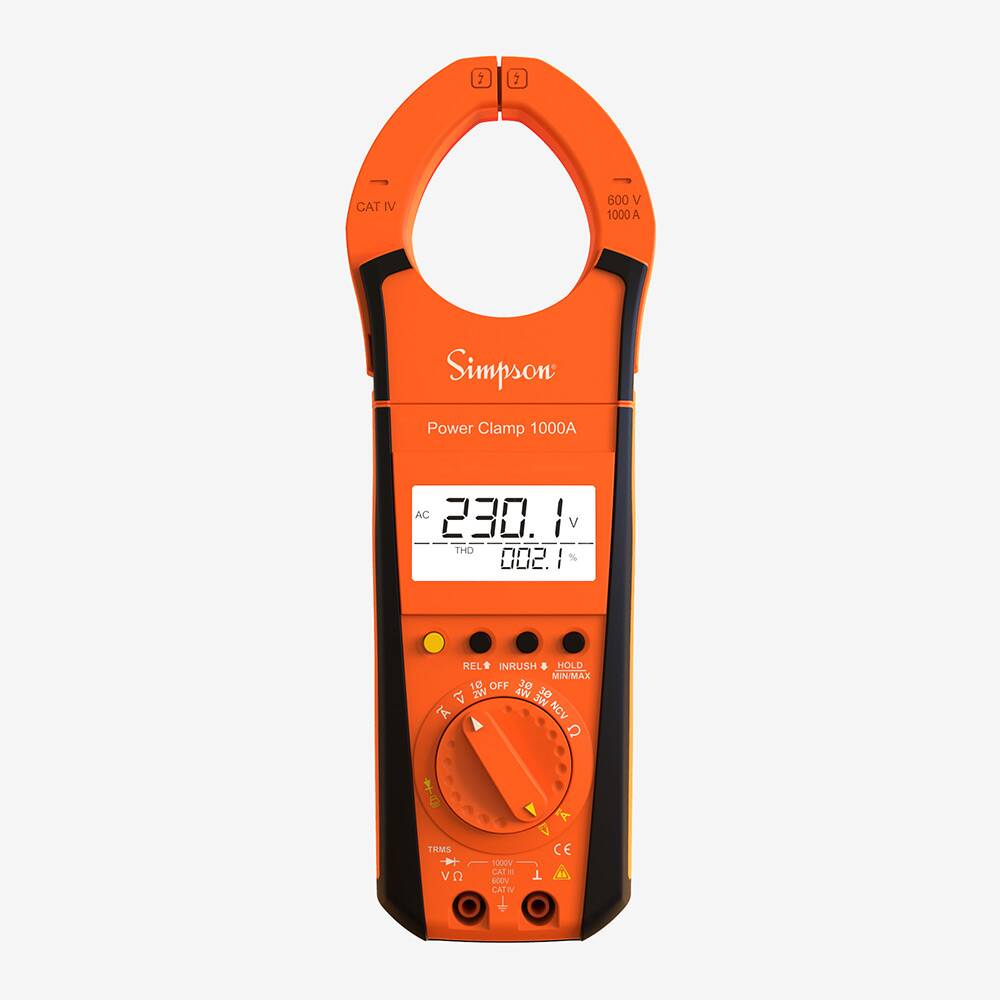

Simpson Digital Power Clamp Meter

Description

click to view larger image

Simpson Electric’s NEW 1000A/400A AC-DC Digital Power Clamp is specially designed with user safety and comfort in mind, for measurement of AC/DC power and power quality parameters of single phase or three phase power systems. The Clamp also features resistance, continuity, diode, and non-contact voltage detection.

Features and Benefits

• Non contact voltage detection
• LPF mode for accurate measurement at VFD
• Built-in 3-phase power measurement with auto calculation
• Horsepower (HP) measurement to check motors and energy measurement
• Data hold function for hands-free operation
• Backlit, dual display of simultaneous parameters for measuring input quantity
• Durable design protects clamp from dust and water
• Up to 49 individual harmonics to understand power quality
• Rotational jaw to keep display in front and trigger at back to enhance user safety
• Double mold casing for firm grip

Measures following parameters

• AC & DC Voltage up to 1000V
• AC & DC Current up to 1000A /400 A
• Inrush/Peak Value Measurement
• Active, Reactive and Apparent Power
• Horse Power Measurement
• kWh
• Measure up to 49th Harmonics
• Phase Angle
• THD
• DF
• Power Factor
• Crest Factor
• LPF Mode for VFD Application

Includes:

• Clamp Meter
• Probe Set
• Instruction Manual/Warranty card
• Clamp Carrying Case
• Test Certifcate
• Battery
• Two crocodile clips
