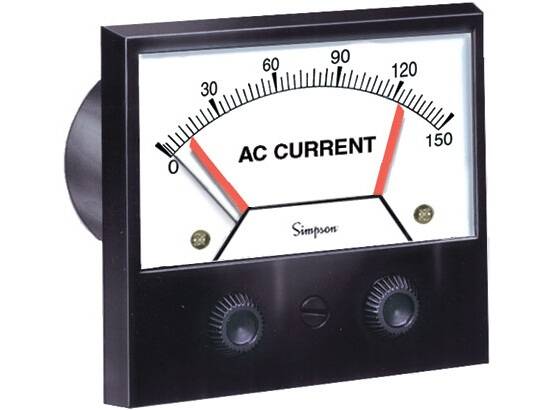

Simpson Rugged Seal Analog Meter Relays – 3300 Series
Description
The Simpson Analog Meter Relay 3300 Series panel meters offer a wide variety of applications in control, alarm and limit use. Photoconductor sensing eliminates all interference with the indicating Meter. These relays incorporate an amplifier input which drives a rugged high torque pivot and jewel or taut-band Meter. Metal cased construction withstands rigorous environmental conditions. The metal cover with a drawn steel rear case gives complete magnetic isolations. In addition, each Meter is moisture, dust, and dirt proof and recommended for use in wash down areas.
- 3½” Models 3323AIXA (DC), 3343AIXA (AC)
- 4½” Models 3324AIXA (DC), 3344AIXA (AC)
- Rugged Seal: Commercially Sealed Moisture and Dust Proof
- Single and Dual Set Points
- Calibration not Affected by Steel Panel Mounting
- Rugged Metal Case for Rigorous Environments
- Wide Variety of Control, Alarm and Limit Use
- Relays Can Be Set for Manual or Automatic Reset
Show Advanced Filters
products found
| Item # | Model | Type | Ranges | Scale |
|---|---|---|---|---|
| 21663 | 3323AIXA - 3½" DSP | DC Millivoltmeters | 0-50 | 0-50 |
| 21665 | 3323AIXA - 3½" SSP | DC Volts | 0-50 | 0-50 |
| 21664 | 3323AIXA - 3½" DSP | DC Volts | 0-1 | 0-1 |
| 21661 | 3323AIXA - 3½" SSP | DC Milliammeters | 0-1 | 0-1 |
| 21623 | 3323AIXA - 3½" DSP | DC Millivoltmeters | 0-50 | 0-50 |
| 21624 | 3323AIXA - 3½" DSP | DC Volts | 0-1 | 0-1 |
| 21625 | 3323AIXA - 3½" DSP | DC Volts | 0-50 | 0-50 |
| 21621 | 3323AIXA - 3½" DSP | DC Milliammeters | 0-1 | 0-1 |
| 21670 | 3324AIXA - 4½" SSP | DC Millivoltmeters | 0-50 | 0-50 |
| 21671 | 3324AIXA - 4½" SSP | DC Volts | 0-1 | 0-1 |
| 21672 | 3324AIXA - 4½" SSP | DC Volts | 0-50 | 0-50 |
| 21668 | 3324AIXA - 4½" SSP | DC Milliammeters | 0-1 | 0-1 |
| 21630 | 3324AIXA - 4½" DSP | DC Millivoltmeters | 0-50 | 0-50 |
| 21631 | 3324AIXA - 4½" DSP | DC Volts | 0-1 | 0-1 |
| 21632 | 3324AIXA - 4½" DSP | DC Volts | 0-50 | 0-50 |
| 21675 | 3343AIXA - 3½" SSP | AC Voltmeters | 0-10 | 0-10 |
| 21628 | 3324AIXA - 4½" DSP | DC Milliammeters | 0-1 | 0-1 |
| 21676 | 3343AIXA - 3½" SSP | AC Voltmeters | 0-150 | 0-150 |
| 21681 | 3343AIXA - 3½" SSP | AC Voltmeters | 0-300 | 0-300 |
| 21673 | 3343AIXA - 3½" SSP | AC Ammeters | 0-5 | 0-5 |
| 21635 | 3343AIXA - 3½" DSP | AC Voltmeters | 0-10 | 0-10 |
| 21633 | 3343AIXA - 3½" DSP | AC Ammeters | 0-5 | 0-5 |
| 21641 | 3343AIXA - 3½" DSP | AC Voltmeters | 0-300 | 0-300 |
| 21636 | 3343AIXA - 3½" DSP | AC Voltmeters | 0-150 | 0-150 |
| 21679 | 3344AIXA - 4½" SSP | AC Voltmeters | 0-10 | 0-10 |
| 21682 | 3344AIXA - 4½" SSP | AC Voltmeters | 0-300 | 0-300 |
| 21677 | 3344AIXA - 4½" SSP | AC Ammeters | 0-5 | 0-5 |
| 21680 | 3344AIXA - 4½" SSP | AC Voltmeters | 0-150 | 0-150 |
| 21639 | 3344AIXA - 4½" DSP | AC Voltmeters | 0-10 | 0-10 |
| 21642 | 3344AIXA - 4½" DSP | AC Voltmeters | 0-300 | 0-300 |
| 21640 | 3344AIXA - 4½" DSP | AC Voltmeters | 0-150 | 0-150 |
| 21637 | 3344AIXA - 4½" DSP | AC Ammeters | 0-5 | 0-5 |
