Simple Logger Data Loggers SL Series – AEMC
Description
AEMC’s Simple Logger® Data Loggers are small one channel recording devices powered by two AA alkaline batteries or through the USB port. These AC and DC loggers can be ready to go in minutes with just a few parameters to set up. Models are available for logging AC voltage, DC voltage, DC current, temperature, pulse and events.
Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed. The main advantage of the logger is its ability to begin recording with only the need to configure a few parameters. A simple one-button operation is all you need. The front panel LED alerts the operator of the logger’s status.
FEATURES:
- Simple one-button operation
- Quick two-wire input connection
- User-configurable scaling, units of measure and recording length and more
- Stores up to four million measurements
- Data analysis software included
- The software provides real-time trend graph display, data download, analysis and report generation
- Powered by two AA alkaline batteries or through the USB port
- Micro-B USB cable included
- Models are available for logging, AC voltage, DC voltage, DC current, temperature, pulse and events
APPLICATIONS:
- Circuit design troubleshooting
- Sensor monitoring
- Power supply profiling
- Finds sags and surges
- Track energy usage
- Count events and records
- Determine event sequencing
Specifications
Downloads
| Item # | Description | Price |
|---|---|---|

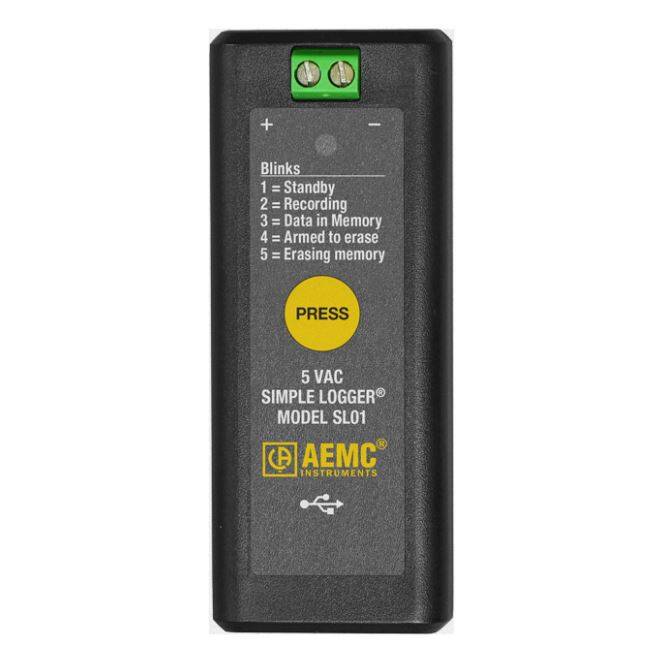

| 2156.01 | Simple Logger Model SL01 (voltage, 5 VAC) | $110.00 |
| 2156.10 | Simple Logger Model SL10 (voltage, 100mVDC) | $149.00 |
| 2156.11 | Simple Logger Model SL11 (voltage, 1 VDC) | $149.00 |
| 2156.12 | Simple Logger Model SL12 (voltage, 10 VDC) | $149.00 |
| 2156.13 | Simple Logger Model SL13 (voltage, 50 VDC) | $149.00 |
| 2156.20 | Simple Logger Model SL20 (current, 4 to 20 mADC) | $149.00 |
| 2156.40 | Simple Logger Model SL40 (temperature, RTD/PT1000) | $109.00 |
| 2156.50 | Simple Logger Model SL50 (temperature, thermocouple) | $115.00 |
