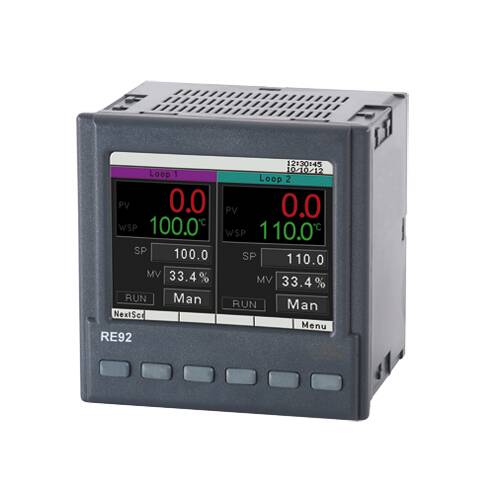

Sifam Tinsley Dual Loop Controller
Description
The Sifam Tinsley RE92 Dual Loop controllers can control two objects independently or control two physical values in one object (e.g. in two-zone furnaces). With universal measuring inputs, they can be used for controlling process signals, temperature and other physical values (e.g. pressure, humidity). These 1/4DIN controllers are designed for precise, accurate measurement & control.
- Universal measuring inputs
- Binary input control
- Set point value: fixed value, programmed or from Input 3
- On/Off, PID, PID step-by-step control (valve control) or PID of heating-cooling type
- Soft start
- 8 types of alarms
- Timer function
- Measurement of heater current and heater burning control
Show Advanced Filters
products found
| Item # | Output 1 & 2 | Analog Outputs | Input 3 (for remote setpoint value) | Ethernet | Transducer Supply |
|---|---|---|---|---|---|
| RE92-0-1-0-0-0-00E | 2 relays | None | None | None | None |
| RE92-0-1-0-0-1-00E | 2 relays | None | None | None | 24VDC @ 30 mA |
| RE92-0-1-0-1-0-00E | 2 relays | None | None | Ethernet Modbus TCP Slave | None |
| RE92-0-1-0-1-1-00E | 2 relays | None | None | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-0-1-1-0-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | None | None | None |
| RE92-0-1-1-0-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | None | None | 24VDC @ 30 mA |
| RE92-0-1-1-1-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | None | Ethernet Modbus TCP Slave | None |
| RE92-0-1-1-1-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | None | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-0-2-0-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | None | None | None |
| RE92-0-2-0-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | None | None | 24VDC @ 30 mA |
| RE92-0-2-0-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | None | Ethernet Modbus TCP Slave | None |
| RE92-0-2-0-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | None | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-0-2-1-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | None | None | None |
| RE92-0-2-1-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | None | None | 24VDC @ 30 mA |
| RE92-0-2-1-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | None | Ethernet Modbus TCP Slave | None |
| RE92-0-2-1-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | None | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-1-1-0-0-0-00E | 2 relays | None | 0-20 or 4-20mA | None | None |
| RE92-1-1-0-0-1-00E | 2 relays | None | 0-20 or 4-20mA | None | 24VDC @ 30 mA |
| RE92-1-1-0-1-0-00E | 2 relays | None | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | None |
| RE92-1-1-0-1-1-00E | 2 relays | None | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-1-1-1-0-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | None | None |
| RE92-1-1-1-0-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | None | 24VDC @ 30 mA |
| RE92-1-1-1-1-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | None |
| RE92-1-1-1-1-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-1-2-0-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-20 or 4-20mA | None | None |
| RE92-1-2-0-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-20 or 4-20mA | None | 24VDC @ 30 mA |
| RE92-1-2-0-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | None |
| RE92-1-2-0-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-1-2-1-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | None | None |
| RE92-1-2-1-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | None | 24VDC @ 30 mA |
| RE92-1-2-1-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | None |
| RE92-1-2-1-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-20 or 4-20mA | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-2-1-0-0-0-00E | 2 relays | None | 0-5 or 0-10V | None | None |
| RE92-2-1-0-0-1-00E | 2 relays | None | 0-5 or 0-10V | None | 24VDC @ 30 mA |
| RE92-2-1-0-1-0-00E | 2 relays | None | 0-5 or 0-10V | Ethernet Modbus TCP Slave | None |
| RE92-2-1-0-1-1-00E | 2 relays | None | 0-5 or 0-10V | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-2-1-1-0-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | None | None |
| RE92-2-1-1-0-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | None | 24VDC @ 30 mA |
| RE92-2-1-1-1-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | Ethernet Modbus TCP Slave | None |
| RE92-2-1-1-1-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-2-2-0-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-5 or 0-10V | None | None |
| RE92-2-2-0-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-5 or 0-10V | None | 24VDC @ 30 mA |
| RE92-2-2-0-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-5 or 0-10V | Ethernet Modbus TCP Slave | None |
| RE92-2-2-0-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | 0-5 or 0-10V | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-2-2-1-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | None | None |
| RE92-2-2-1-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | None | 24VDC @ 30 mA |
| RE92-2-2-1-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | Ethernet Modbus TCP Slave | None |
| RE92-2-2-1-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | 0-5 or 0-10V | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-3-1-0-0-0-00E | 2 relays | None | Pot transmitter 100 or 1000 ohm | None | None |
| RE92-3-1-0-0-1-00E | 2 relays | None | Pot transmitter 100 or 1000 ohm | None | 24VDC @ 30 mA |
| RE92-3-1-0-1-0-00E | 2 relays | None | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | None |
| RE92-3-1-0-1-1-00E | 2 relays | None | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-3-1-1-0-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | None | None |
| RE92-3-1-1-0-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | None | 24VDC @ 30 mA |
| RE92-3-1-1-1-0-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | None |
| RE92-3-1-1-1-1-00E | 2 relays | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-3-2-0-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | Pot transmitter 100 or 1000 ohm | None | None |
| RE92-3-2-0-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | Pot transmitter 100 or 1000 ohm | None | 24VDC @ 30 mA |
| RE92-3-2-0-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | None | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | None |
| RE92-3-2-0-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | None | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
| RE92-3-2-1-0-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | None | None |
| RE92-3-2-1-0-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | None | 24VDC @ 30 mA |
| RE92-3-2-1-1-0-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | None |
| RE92-3-2-1-1-1-00E | 2 binary (transistor) outputs 0-5V, isolated | Two 0/4-20mA or 0-10V, isolated | Pot transmitter 100 or 1000 ohm | Ethernet Modbus TCP Slave | 24VDC @ 30 mA |
