PT Series Pressure Transmitters & Transducers – Noshok
Description
The PT Series Industrial Pressure Transmitters and Transducers are highly accurate, shock resistant and extremely stable over a long period of time. A variety of pressure ranges, output signals, process connections and electrical connections are available.

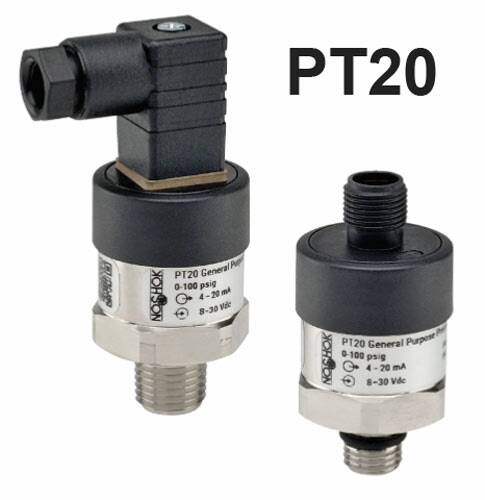

PT20 General Purpose, Fixed Range Transmitter/Transducer
- Gauge, compound, absolute and vacuum ranges from 1 psig to 10,000 psig
- Basic accuracy ±0.50% of span
- 316 and 13-8PH Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
- cULus compliant

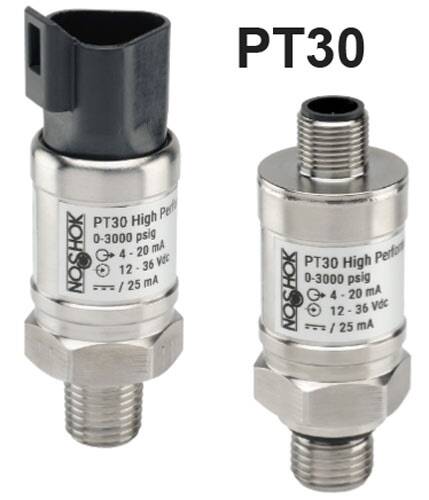

PT30 High Performance, Fixed Range Transmitter/Transducer
- Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
- Basic accuracy ±0.25% of span
- Current and voltage outputs available
- 316 Stainless Steel wetted parts
- RoHS compliant
- Built to CE standards to suppress RFI, EMI and ESD
- cULus pending

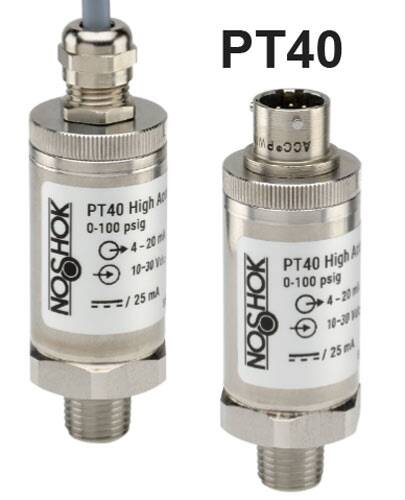

PT40 High Accuracy, Fixed Range Transmitter/Transducer
- Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
- Premium accuracy ±0.25% or ±0.125% of span
- Field adjustable offset and span
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
The PT Series replaces Noshok Series 100, 200, 300 and 615. Use this crossover tool to convert a legacy number to the PT Series.
These data sheets include detailed specifications and mechanical dimensions:
Noshok PT20 Datasheet Noshok PT30 Datasheet Noshok PT40 Datasheet
