Description

click to view larger image

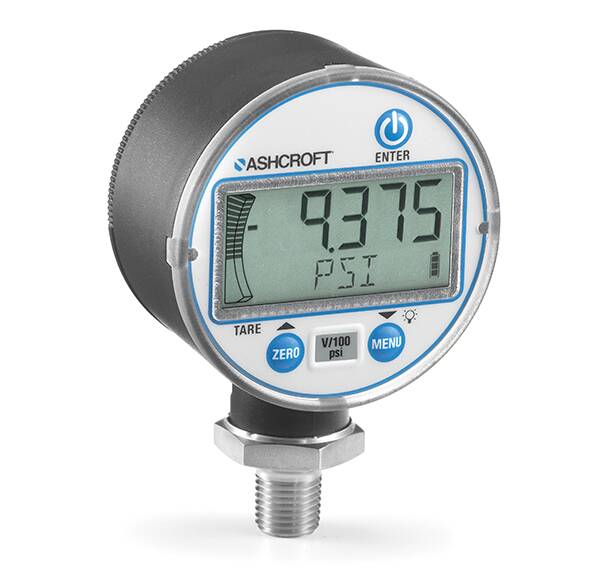

The Ashcroft® DG25 general-purpose digital pressure gauge provides exceptional performance, stability and reliability. The laser-welded stainless steel sensor and socket make this product suitable for use with a wide variety of pressure media in demanding industrial applications. The DG25 was designed with OEM in mind and can easily be custom configured to meet unique requirements.

The DG25 digital pressure gauge is ideal where precise and reliable pressure measurement is essential:

Industrial Market:

• Hydraulics and Pneumatics
• Test and Measurement
• Specialized OEM Equipment
• Process Applications:
• Material Strength Testing
• Weighing
• Torque Measurement

Features

•  5 Digit Display, 1/2″ Character Height
•  20 Segment Bar Graph
• Selectable Engineering Units
•  Min/Max Memory
•  IP67 Case, Optional Protective Boot
• Wide variety of pressure connection thread options
• Customized keypad (optional)

Specifications:

• Accuracy: ±0.5% terminal point (standard) / ±0.25% (optional)
• Pressure Ranges: Vacuum to 25,000 psi
• Full 5 digital LCD display
• Case size: 2 1/2″; polycarbonate / ABS
• IP67 weatherproof enclosure
• Wetted materials: Laser welded 316L stainless steel / and 17-4 Ph stainless steel

Catalog Page 107                                   DG25-Datasheet
