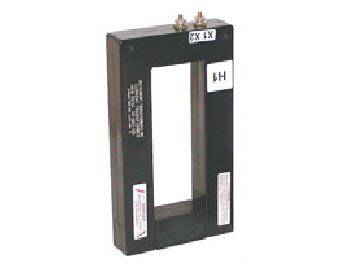

Split Core Current Transformers, Window 2″ x 5.5″ – Model 600 – GE ITI
Description
GE ITI Model: 600 Split Core AC Current Transformers; This transformer is designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables. Available from 400A to 2000A primary and 5A secondary. Window Size: 2″ x 5.5″
- 50-400 Hz
- 0.6kV, BIL 10kV FW
- CSA & UR Approved
Leads: #16 AWG, 24″
Show Advanced Filters
products found
| Item # | Current Ratio | VA at 1% Class | B0.1 Metering Class, 60Hz | B0.2 Metering Class, 60Hz | B0.5 Metering Class, 60Hz |
|---|---|---|---|---|---|
| 600-601 | 600:5 | 2.5 | 2.4 | 2.4 | |
| 600-801 | 800:5 | 5 | 1.2 | 1.2 | 2.4 |
| 600-102 | 1000:5 | 7.5 | 1.2 | 1.2 | 2.4 |
| 600-122 | 1200:5 | 15 | 0.6 | 1.2 | 1.2 |
| 600-152 | 1500:5 | 20 | 0.6 | 0.6 | 1.2 |
| 600-162 | 1600:5 | 20 | 0.6 | 0.6 | 1.2 |
| 600-202 | 2000:5 | 30 | 0.6 | 0.6 | 0.6 |
| 600-501 | 500:5 | 2 | 2.4 | 4.8 | |
| 600-401 | 400:5 | 1.5 | 2.4 | 4.8 |
