Lascar USB Temperature Data Loggers
Description
Lascar EL-USB-1 Data Loggers are a quick and easy tool to store temperature reading. Models with and without local display are available. Built-in USB plug means no need to search for the right cable to transfer data to a PC. EL-USB-1 models use an internal temperature sensor. EL-USB-TP has an external thermistor sensor.
• –35° to +80°C (–31° to +176°F) Measurement Range
• Stores More Than 16,000 Readings
• Programmable Sample Rates from 10 Sec to 12 Hours
• High and Low Alarm Thresholds with LED Indicators
• 2½ Digit LCD Display Shows Latest Log & Min/Max Temperatures
• Clear Cap Provides IP67 Seal
Lascar’s EasyLog USB control software is supplied free of charge with each data logger. Easy to install, the control software is used to set-up the data logger as well as download, graph and export data to Excel. Simply insert any of these loggers into a computer’s USB port, name it, choose your required sampling rate, set high and low alarms (if required) and set the logger start time. Once configured, the logger can be removed from the computer to log independently. After logging is completed, data is downloaded back to the PC, where it can be analyzed and viewed as a graph or exported to Excel.
The software allows the following parameters to be configured:
- Logger name
- Logging rates
- Alarms
- Immediate delayed and push-to-start logging
- Data rollover and more
Each unit includes software and 3.6V lithium battery.
| Item # | Description |
|---|---|
| EL-USB-1 | Temperature Data Logger |
| EL-USB-1-LCD | Temperature Data Logger with Display |
| EL-USB-1-PRO | Extended Temperature Data Logger |

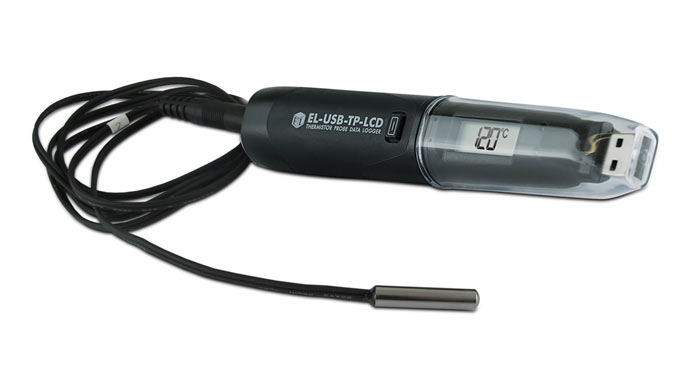

| EL-USB-TP-LCD | External Thermistor probe with LCD |
