Description

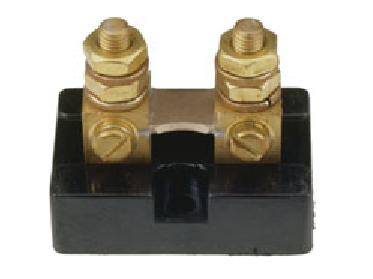

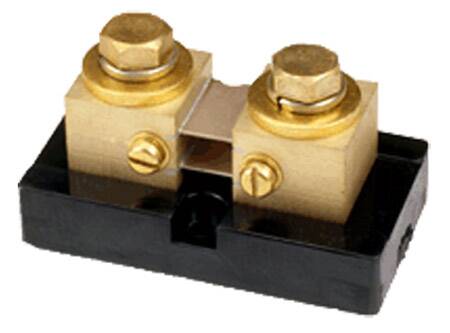

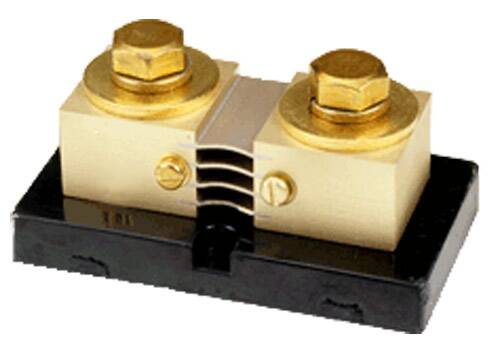

Type LA, LB, and LC shunts are used when size and weight are major design considerations. These shunts are built to U.S. Military Specification A-A-55524, which supersedes MIL-S-61B.
- 5 to 1200 DC Amps
- Standard accuracy ±0.25%. ± 0.1% available on request
- Recommended continuous operation: <2/3 rated current
Standard output is 50mV. 100mV versions can be ordered by changing part number suffix from -50 to -100.
Terminal spacing (C-C) on 50mV units: LA = 1.0″; LB = 1.5″; LC = 2.16″
We can also supply calibrated leads (0.065 ohms), 5 feet long, for connecting shunts to analog panel meters.
Weschler Lightweight Shunts are equivalent to the Empro MLA, MLB and MLC series and replace those products in all applications.
Show Advanced Filters
products found
| Item # | Amp | Type | Length (in) | Width (in) | Price |
|---|---|---|---|---|---|
| LA-85-50 | 85 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LA-100-50 | 100 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LB-300-50 | 300 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LA-150-50 | 150 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LA-80-50 | 80 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LB-170-50 | 170 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LB-500-50 | 500 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LB-200-50 | 200 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LA-5-50 | 5 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LB-250-50 | 250 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LB-400-50 | 400 | LB, 50 mV | 3.25 | 1.75 | $57.84 |
| LA-75-50 | 75 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LC-1200-50 | 1200 | LC, 50 mV | 4.5 | 2.5 | $85.27 |
| LA-50-50 | 50 | LA, 50 mV | 2 | 1.25 | $55.78 |
| LC-1000-50 | 1000 | LC, 50 mV | 4.5 | 2.5 | $85.27 |
| LC-800-50 | 800 | LC, 50 mV | 4.5 | 2.5 | $85.27 |
| LA-30-50 | 30 | LA, 50 mV | 2 | 1.25 | $50.59 |
| LA-20-50 | 20 | LA, 50 mV | 2 | 1.25 | $50.59 |
| LB-600-50 | 600 | LB, 50 mV | 3.25 | 1.75 | $52.47 |
| LA-10-50 | 10 | LA, 50 mV | 2 | 1.25 | $50.59 |
| LA-15-50 | 15 | LA, 50 mV | 2 | 1.25 | $50.59 |
