MB2 Mini-Batcher Batch Controller – KEP
Description

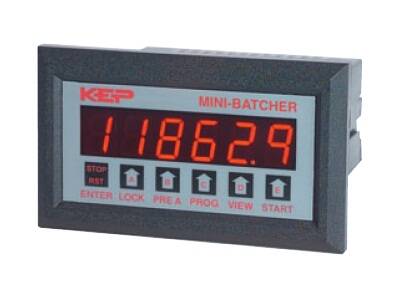

The Mini-Batcher is a 6 digit totalizer and 4.5 digit rate meter with two relay outputs. One output is dedicated to the batch amount (Preset A), the other can be activated for Prewarn or Batch/Grand Total. The unit can count up to the preset (reset to 0) or down from the preset (set to preset). Start, Stop and Reset functions can be activated from the front panel or remote inputs.. An analog output (assignable for Rate or Batch Amount) is available for data logging. Several units can communicate to a host computer on a single RS232 or RS422 loop.
Up to 247 units can communicate to a host computer using Modbus RTU protocol. Alternately, an analog output (assignable for Rate or Batch Amount) can be ordered for data logging.
- Display Rate, Batch Size and Number of Batches or Grand Total
- 5 Digit Scaling Factor
- Pulse Input
- 2 Relay Outputs
- Analog Output or Serial/Modbus Options
- NEMA 4X / IP65 Front Panel
Show Advanced Filters
products found
| Item # | Count Inputs | Operating Voltage | Options |
|---|---|---|---|
| KE/MB2A31 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 110 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2A32 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 110 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2A33 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 110 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2A34 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 110 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2A3A | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 110 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
| KE/MB2A3M1 | 30mV mag. pickup, 5kHz max. | 110 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2A3M2 | 30mV mag. pickup, 5kHz max. | 110 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2A3M3 | 30mV mag. pickup, 5kHz max. | 110 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2A3M4 | 30mV mag. pickup, 5kHz max. | 110 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2A3MA | 30mV mag. pickup, 5kHz max. | 110 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
| KE/MB2B31 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 220 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2B32 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 220 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2B33 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 220 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2B34 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 220 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2B3A | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 220 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
| KE/MB2B3M1 | 30mV mag. pickup, 5kHz max. | 220 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2B3M2 | 30mV mag. pickup, 5kHz max. | 220 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2B3M3 | 30mV mag. pickup, 5kHz max. | 220 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2B3M4 | 30mV mag. pickup, 5kHz max. | 220 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2B3MA | 30mV mag. pickup, 5kHz max. | 220 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
| KE/MB2C31 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 24 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2C32 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 24 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2C33 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 24 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2C34 | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 24 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2C3A | 4-30 VDC or 0-1VDC pulse, 10kHz max. | 24 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
| KE/MB2C3M1 | 30mV mag. pickup, 5kHz max. | 24 VAC ±15% or 12-15 VDC | RS232 Comm., KEP protocol |
| KE/MB2C3M2 | 30mV mag. pickup, 5kHz max. | 24 VAC ±15% or 12-15 VDC | RS422 Comm., KEP protocol |
| KE/MB2C3M3 | 30mV mag. pickup, 5kHz max. | 24 VAC ±15% or 12-15 VDC | RS232, Modbus RTU |
| KE/MB2C3M4 | 30mV mag. pickup, 5kHz max. | 24 VAC ±15% or 12-15 VDC | RS422/RS485, Modbus RTU |
| KE/MB2C3MA | 30mV mag. pickup, 5kHz max. | 24 VAC ±15% or 12-15 VDC | Analog Output (4-20/0-20 mA) |
