Fusion Large Display Meters – London Electronics
Description

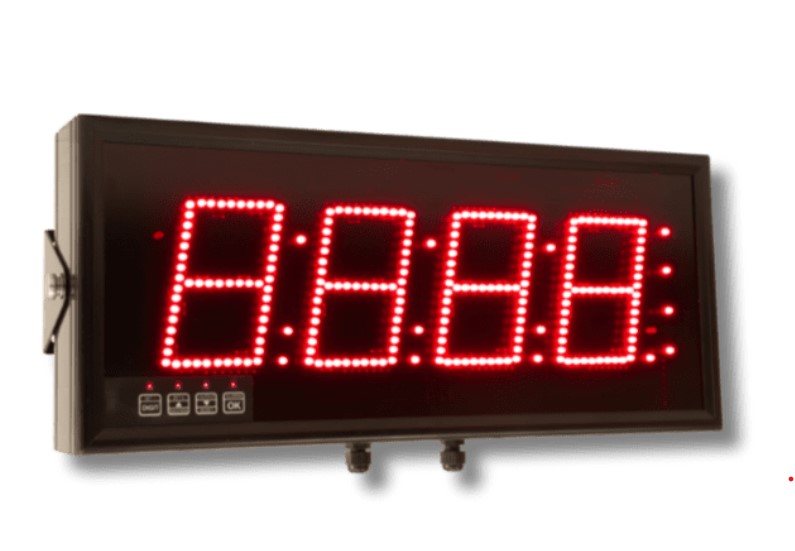

The London Electronics Fusion series of large display meters let you clearly see important information from a distance and are ideal for use in public areas, offices, large factories and outdoor installations.
Features
- Analog & Digital Inputs
- Large, Bright Digits
- Setup Without Menus
- Indoor & Outdoor Models
- Choice of Mounting Position
Digit Height
- 2” (57 mm) for up to 25 metres viewing
- 4” (102mm) for up to 50 metres viewing
- 6” (150mm) for up to 75 metres viewing
- 8” (200mm) for up to 100 metres viewing
- 12” (300mm) for up to 140 metres viewing
- 16” (400mm) for up to 200 metres viewing
Digit Colors
- Red
- Green
- Yellow
- Blue
- White
Display Functions
- Total
- Rate / Speed
- Target (ideal for production lines)
- Frequency
- Weight
- Temperature
- Humidity
- Real Time
- Elapsed Time
- Power, RPM, Torque
- Pressure
Input Signals
- 4-20mA, 0-10V, 1-5V etc
- Loadcells
- PNP, NPN, Namur, Contact closure, etc
- Serial Data RS232, 485, 422 etc.
- Temperature sensors
- Humidity sensors
- Logic Reset, Tare, Peak/Valley etc.
Output Options
- 2 or 4 alarm SPST relays, 2x SPDT
- 4-20mA, 0-10V or -10 to +10V analog
- RS232, RS485, Ethernet data output
