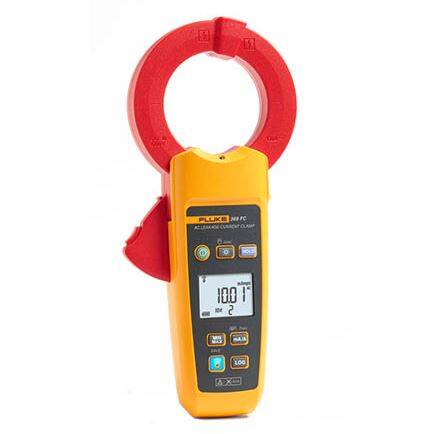

Fluke Leakage Clamp Meter 368 FC & 369 FC

Description

click to view larger image

Fluke 368 FC & 369 FC TRMS leakage current clamp meters helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment offline.

They have an oversize jaw for work with extra-large conductors The clamp’s jaw is fully shielded to accurately capture very small leakage signals and to minimize external electromagnetic interference.

• Model 368 FC Jaw Aperture: 40mm (1.57”)
• Model 369 FC Jaw Aperture: 61mm (2.4”)

They also offer wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools — the 368 FC and 369 FC allow you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures

Features

• True-rms measurements for accuracy when measuring complex, nonsinusoidal waveforms
• Highest resolution of 1 μA, measure up to 60 A
• Selectable filter function removes unwanted noise
• Max/Min/Average readings and Hold function
• Fully shielded jaw with 40 mm or 61 mm jaw opening
• Forward-facing LED worklight for use in dark wiring cabinets
• Backlit display; auto backlight off and auto power off for extended battery life
• CAT III 600V safety rating
• Wireless data connectivity via Fluke Connect

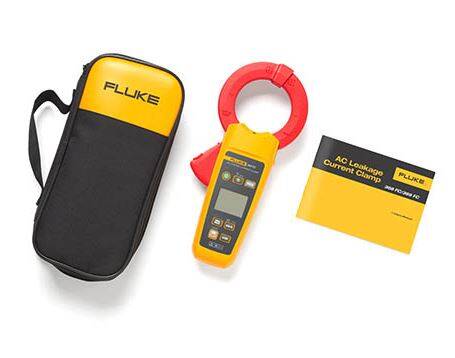

Included

• Leakage Clamp Meter
• Soft case
• Safety Manual
• Batteries: 2 AA

Catalog Page 147                   368fc-369fc-Datasheet
