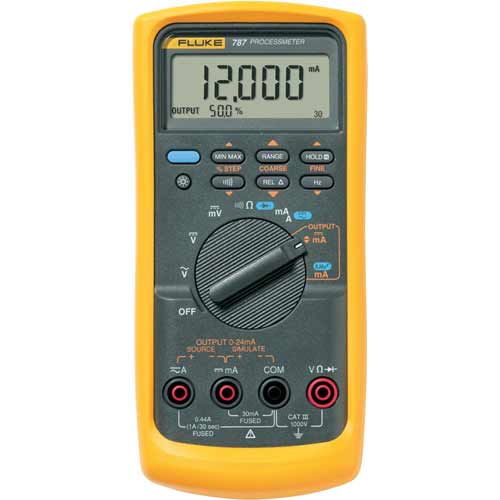

Fluke 787B & 789 Process Meters
Description
The Fluke 787B and 789 ProcessMeter™ double troubleshooting capabilities by combining the power of a safety-rated digital multimeter and mA loop calibrator into a single, compact test tool. Whether you only need to source and simulate mA, or need a 24V loop power supply, Fluke has a ProcessMeter™ test tool designed specifically to meet your needs. Based on the trusted measurement capabilities of the Fluke 87 DMM, the 787B and 789 add the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.
With Fluke Connect® mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere
- 787B and 789 key features
• 20 mA dc current source/measure/simulate
• Simultaneous mA and % of scale readout
• 1000 volt CAT III and 600 V CAT IV performance
• Fluke Connect® compatibility for wireless data logging (with IR3000FC module)*
• Precision 1000 V, 440 mA true-rms digital multimeter
• Frequency measurement to 20 kHz
• Min/Max/Average/Hold/Relative modes
• Diode test and continuity beeper
• Manual step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
• Externally accessible battery for easy battery changes - 789 additional features
• 24 V Loop power supply
• HART mode setting with loop power (adds 250 ohm resistor)
| Item # | Description |
|---|---|
| Fluke 787B | Process Meter |
| Fluke 789. | Process Meter with Hart Resistor |
