Description

click to view larger image

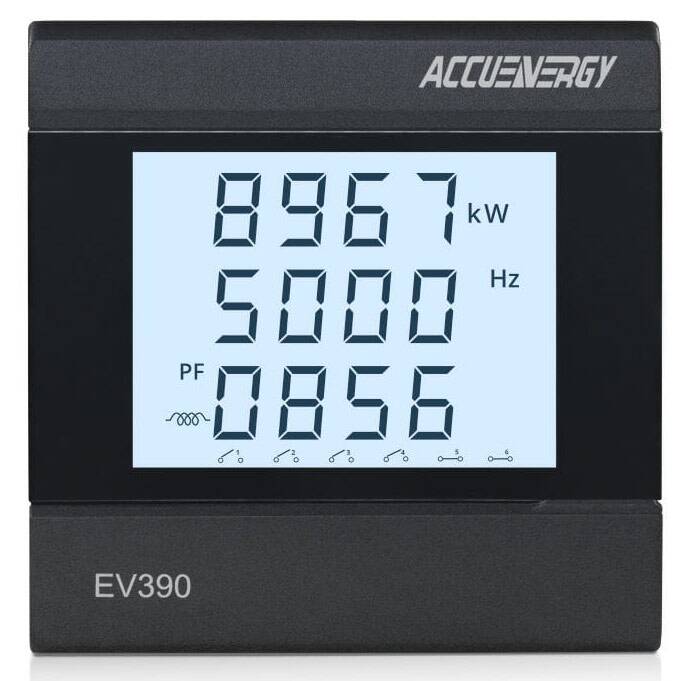

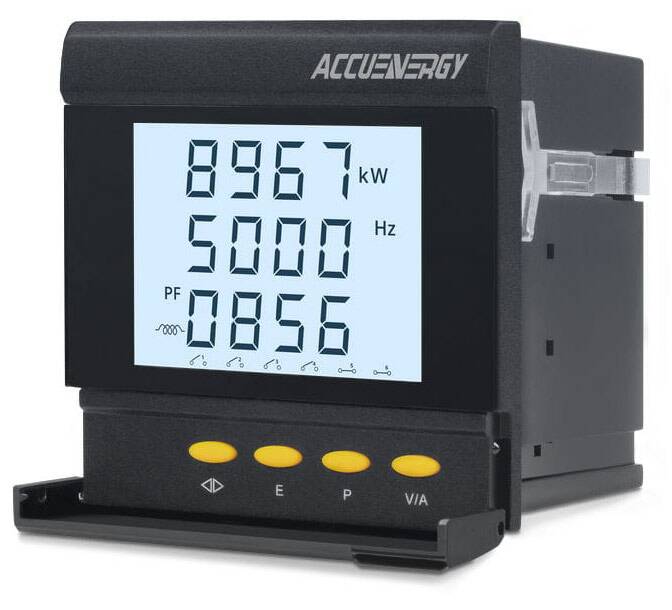

The EV300 Series power and energy panel meters are an affordable, user-friendly three-phase metering solution for monitoring power, voltage, current, and bi-directional energy. Certified to utility revenue grade accuracy standards, their standard panel mount design, Modbus-RTU communications, and array of I/O and alarm options make these economical meters a valuable tool in any industrial or commercial environment. The EV300 Series are ANSI C12.20 class 0.5 with support for any voltage system rated between 10V to 230V L-N (400V L-L). For higher voltages, potential transformer ratio is entered during setup.  Frequency is automatically detected for 50Hz and 60 Hz systems.

• Bi-directional energy metering
• Utility revenue grade: ANSI C12.20 0.5 Class & IEC 62053-22 0.5s Class
• Communicate via Modbus-RTU through the built-in RS485 port
• Field-configurable 5A or 1A CT input
• Pulse, analog (4-20mA), & alarm-triggered output options available
• Standard Modbus RTU communications
• Two form factors: Standard panel mount meter or built into an AcuPanel enclosure

Accessories (order separately)
USB-RS485     RS-485 to USB converter for connecting meter to computer (max distance 1200m)
96-IP66            Screen protector

Accuenergy-EV300-Datasheet
