DC Voltage & Current Analog Switchboard Meters – Weschler

Description

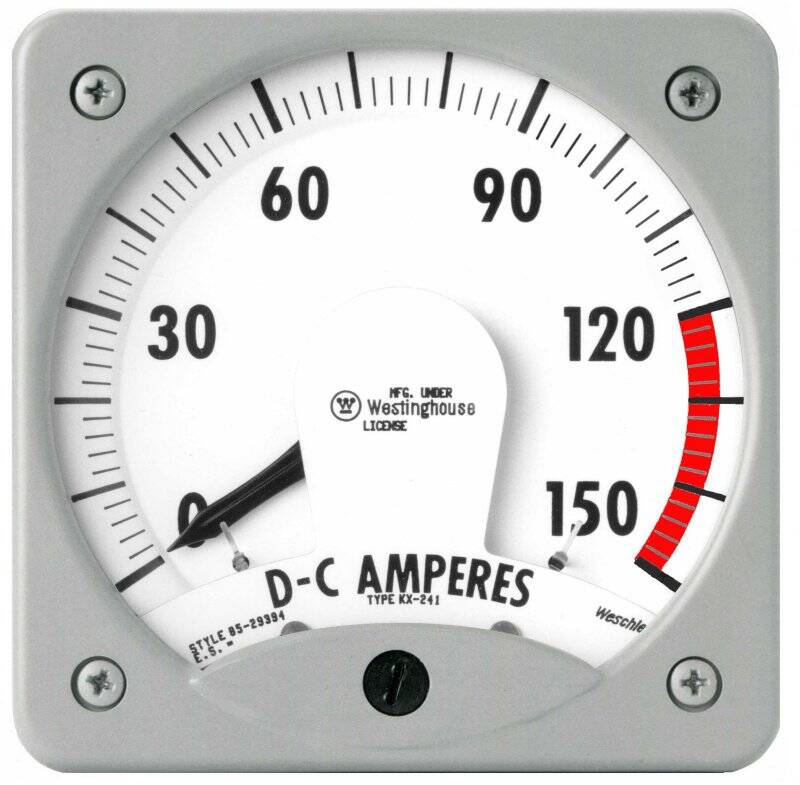

DC Voltage & Current Analog Switchboard Meter
click to view larger image

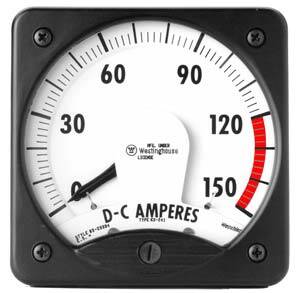

DC Voltage Meter

Weschler KX-241 & KX-261 instruments are designed to achieve the ultimate in reliability and performance. These instruments are recommended for use on electric utility switchboards and industrial process control panels. Commercial instruments comply with ANSI Standard C39.1 for 1% class switchboard instruments. The Hi-Shock versions were developed to meet the special needs of U.S. Navy shipboard applications. They are also suitable for commercial, marine and industrial applications subjected to humid conditions or severe mechanical shocks.

  • High accuracy, full view design
  • Volts, amps, watts, vars, speed, frequency and power factor
  • High overload capacity
  • Ruggedized (High Shock) versions
  • Ultimate in reliability and performance
  • Special scales and calibration
  • Formerly Westinghouse brand KX241 & KX261
Current Analog Switchboard Meters Specs

Modifications available on request: white on black dial, dual scale, special colors, illumination, special calibration and custom ranges.

Catalog Page 043           K241-K261-Datasheet             Style-Listings-Switchboard

Downloads

SKU: N/A Categories: , , , , , ,
Show Advanced Filters

products found
Item # Model Type Rating Standard Scale Case Size
691B673A09KX-241DC Microammeter0-100 uA0-100 DC Microamperes4 1/2 in
671B420A25KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-1500 DC Amperes4 1/2 in
691B673A10KX-241DC Microammeter0-200 uA0-200 DC Microamperes4 1/2 in
671B420A29KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-4000 DC Amperes4 1/2 in
691B673A12KX-241DC Microammeter0-500 uA0-500 DC Microamperes4 1/2 in
671B420A34KX-241DC Ammeter, Hi Shock - Shunt Rated50 mVSpecify4 1/2 in
691B673A13KX-241DC Microammeter0-750 uA0-750 DC Microamperes4 1/2 in
671B420A35KX-241DC Ammeter, Hi Shock - Shunt Rated100 mVSpecify4 1/2 in
691B687A09KX-241DC Milliammeter0-1 mA0-1 DC Milliamperes4 1/2 in
671B421A09KX-241DC Volts, Hi Shock0-2 V0-2 DC Volts4 1/2 in
691B687A10KX-241DC Milliammeter0-2 mA0-2 DC Milliamperes4 1/2 in
671B421A10KX-241DC Volts, Hi Shock0-5 V0-5 DC Volts4 1/2 in
691B687A11KX-241DC Milliammeter0-5 mA0-5 DC Milliamperes4 1/2 in
671B421A11KX-241DC Volts, Hi Shock0-8 V0-8 DC Volts4 1/2 in
691B687A12KX-241DC Milliammeter0-10 mA0-10 DC Milliamperes4 1/2 in
671B421A12KX-241DC Volts, Hi Shock0-15 V0-15 DC Volts4 1/2 in
691B687A13KX-241DC Milliammeter0-20 mA0-20 DC Milliamperes4 1/2 in
671B421A13KX-241DC Volts, Hi Shock0-30 V0-30 DC Volts4 1/2 in
691B687A14KX-241DC Milliammeter0-50 mA0-50 DC Milliamperes4 1/2 in
671B421A14KX-241DC Volts, Hi Shock0-80 V0-80 DC Volts4 1/2 in
691B687A16KX-241DC Milliammeter0-200 mA0-200 DC Milliamperes4 1/2 in
671B421A21KX-241DC Volts, Hi Shock0-100 V0-100 DC Volts4 1/2 in
691B687A17KX-241DC Milliammeter0-500 mA0-500 DC Milliamperes4 1/2 in
671B421A15KX-241DC Volts, Hi Shock0-150 V0-150 DC Volts4 1/2 in
714B443A11KX-241DC Ammeter0-2 A0-2 DC Amperes4 1/2 in
671B421A16KX-241DC Volts, Hi Shock0-300 V0-300 DC Volts4 1/2 in
714B443A13KX-241DC Ammeter0-5 A0-5 DC Amperes4 1/2 in
671B421A18KX-241DC Volts, Hi Shock0-600 V0-600 DC Volts4 1/2 in
714B443A16KX-241DC Ammeter0-15 A0-15 DC Amperes4 1/2 in
671B421A19KX-241DC Volts, Hi Shock0-800 V0-800 DC Volts4 1/2 in
714B443A17KX-241DC Ammeter0-20 A0-20 DC Amperes4 1/2 in
691B671A12KX-241DC Ammeter - Shunt Rated50 mV0-10 DC Amperes4 1/2 in
691B671A13KX-241DC Ammeter - Shunt Rated50 mV0-15 DC Amperes4 1/2 in
691B671A14KX-241DC Ammeter - Shunt Rated50 mV0-25 DC Amperes4 1/2 in
691B671A15KX-241DC Ammeter - Shunt Rated50 mV0-50 DC Amperes4 1/2 in
691B671A16KX-241DC Ammeter - Shunt Rated50 mV0-75 DC Amperes4 1/2 in
691B671A17KX-241DC Ammeter - Shunt Rated50 mV0-100 DC Amperes4 1/2 in
691B671A18KX-241DC Ammeter - Shunt Rated50 mV0-150 DC Amperes4 1/2 in
691B671A19KX-241DC Ammeter - Shunt Rated50 mV0-200 DC Amperes4 1/2 in
691B671A20KX-241DC Ammeter - Shunt Rated50 mV0-250 DC Amperes4 1/2 in
691B671A21KX-241DC Ammeter - Shunt Rated50 mV0-300 DC Amperes4 1/2 in
691B671A22KX-241DC Ammeter - Shunt Rated50 mV0-400 DC Amperes4 1/2 in
691B671A23KX-241DC Ammeter - Shunt Rated50 mV0-500 DC Amperes4 1/2 in
691B671A24KX-241DC Ammeter - Shunt Rated50 mV0-600 DC Amperes4 1/2 in
691B671A26KX-241DC Ammeter - Shunt Rated50 mV0-1000 DC Amperes4 1/2 in
691B671A27KX-241DC Ammeter - Shunt Rated50 mV0-1500 DC Amperes4 1/2 in
691B671A31KX-241DC Ammeter - Shunt Rated50 mV0-4000 DC Amperes4 1/2 in
691B671A09KX-241DC Ammeter - Shunt Rated50 mVSpecify4 1/2 in
691B671A10KX-241DC Ammeter - Shunt Rated100 mVSpecify4 1/2 in
714B449A09KX-241DC Millivoltmeter - Self-Contained0-50 mV0-50 DC Millivolts4 1/2 in
714B449A10KX-241DC Millivoltmeter - Self-Contained0-100 mV0-100 DC Millivolts4 1/2 in
714B449A11KX-241DC Millivoltmeter - Self-Contained0-200 mV0-200 DC Millivolts4 1/2 in
714B449A12KX-241DC Millivoltmeter - Self-Contained0-500 mV0-500 DC Millivolts4 1/2 in
691B672A09KX-241DC Volts0-2 V0-2 DC Volts4 1/2 in
691B672A10KX-241DC Volts0-5 V0-5 DC Volts4 1/2 in
691B672A11KX-241DC Volts0-8 V0-8 DC Volts4 1/2 in
691B672A38KX-241DC Volts0-10 V0-10 DC Volts4 1/2 in
691B672A12KX-241DC Volts0-15 V0-15 DC Volts4 1/2 in
691B672A13KX-241DC Volts0-30 V0-30 DC Volts4 1/2 in
691B672A14KX-241DC Volts0-80 V0-80 DC Volts4 1/2 in
691B672A37KX-241DC Volts0-100 V0-100 DC Volts4 1/2 in
691B672A15KX-241DC Volts0-150 V0-150 DC Volts4 1/2 in
691B672A16KX-241DC Volts0-300 V0-300 DC Volts4 1/2 in
691B672A18KX-241DC Volts0-600 V0-600 DC Volts4 1/2 in
691B672A19KX-241DC Volts0-800 V0-800 DC Volts4 1/2 in
691B689A26KX-261DC Microammeter0-100 uA0-100 DC Microamperes8 3/4 in
691B689A27KX-261DC Microammeter0-200 uA0-200 DC Microamperes8 3/4 in
691B689A29KX-261DC Microammeter0-500 uA0-500 DC Microamperes8 3/4 in
691B689A30KX-261DC Microammeter0-750 uA0-750 DC Microamperes8 3/4 in
691B689A09KX-261DC Milliammeter0-1 mA0-1 DC Milliamperes8 3/4 in
691B689A10KX-261DC Milliammeter0-2 mA0-2 DC Milliamperes8 3/4 in
691B689A11KX-261DC Milliammeter0-5 mA0-5 DC Milliamperes8 3/4 in
691B689A12KX-261DC Milliammeter0-10 mA0-10 DC Milliamperes8 3/4 in
691B689A13KX-261DC Milliammeter0-20 mA0-20 DC Milliamperes8 3/4 in
691B689A14KX-261DC Milliammeter0-50 mA0-50 DC Milliamperes8 3/4 in
691B689A16KX-261DC Milliammeter0-200 mA0-200 DC Milliamperes8 3/4 in
691B689A17KX-261DC Milliammeter0-500 mA0-500 DC Milliamperes8 3/4 in
691B692A27KX-261DC Ammeter0-2 A0-2 DC Amperes8 3/4 in
691B692A29KX-261DC Ammeter0-5 A0-5 DC Amperes8 3/4 in
691B692A32KX-261DC Ammeter0-15 A0-15 DC Amperes8 3/4 in
691B692A33KX-261DC Ammeter0-20 A0-20 DC Amperes8 3/4 in
691B692A11KX-261DC Ammeter - Shunt Rated50 mVSpecify8 3/4 in
691B692A12KX-261DC Ammeter - Shunt Rated100 mVSpecify8 3/4 in
691B692A10KX-261DC Ammeter - Shunt Rated50 mVSpecify8 3/4 in
714B462A09KX-261DC Millivoltmeter - Self-Contained0-50 mV0-50 DC Millivolts8 3/4 in
714B462A10KX-261DC Millivoltmeter - Self-Contained0-100 mV0-100 DC Millivolts8 3/4 in
714B462A11KX-261DC Millivoltmeter - Self-Contained0-200 mV0-200 DC Millivolts8 3/4 in
714B462A12KX-261DC Millivoltmeter - Self-Contained0-500 mV0-500 DC Millivolts8 3/4 in
691B690A09KX-261DC Volts0-2 V0-2 DC Volts8 3/4 in
691B690A10KX-261DC Volts0-5 V0-5 DC Volts8 3/4 in
691B690A11KX-261DC Volts0-8 V0-8 DC Volts8 3/4 in
691B690A12KX-261DC Volts0-15 V0-15 DC Volts8 3/4 in
691B690A13KX-261DC Volts0-30 V0-30 DC Volts8 3/4 in
691B690A14KX-261DC Volts0-80 V0-80 DC Volts8 3/4 in
691B690A15KX-261DC Volts0-150 V0-150 DC Volts8 3/4 in
691B690A16KX-261DC Volts0-300 V0-300 DC Volts8 3/4 in
691B690A18KX-261DC Volts0-600 V0-600 DC Volts8 3/4 in
691B690A19KX-261DC Volts0-800 V0-800 DC Volts8 3/4 in
671B419A09KX-241DC Microammeter, Hi Shock0-100 uA0-100 DC Microamperes4 1/2 in
671B419A10KX-241DC Microammeter, Hi Shock0-200 uA0-200 DC Microamperes4 1/2 in
671B419A12KX-241DC Microammeter, Hi Shock0-500 uA0-500 DC Microamperes4 1/2 in
671B419A13KX-241DC Microammeter, Hi Shock0-750 uA0-750 DC Microamperes4 1/2 in
671B419A25KX-241DC Milliammeter, Hi Shock0-1 mA0-1 DC Milliamperes4 1/2 in
671B419A26KX-241DC Milliammeter, Hi Shock0-2 mA0-2 DC Milliamperes4 1/2 in
671B419A27KX-241DC Milliammeter, Hi Shock0-5 mA0-5 DC Milliamperes4 1/2 in
671B419A28KX-241DC Milliammeter, Hi Shock0-10 mA0-10 DC Milliamperes4 1/2 in
671B419A29KX-241DC Milliammeter, Hi Shock0-20 mA0-20 DC Milliamperes4 1/2 in
671B419A32KX-241DC Milliammeter, Hi Shock0-200 mA0-200 DC Milliamperes4 1/2 in
671B419A33KX-241DC Milliammeter, Hi Shock0-500 mA0-500 DC Milliamperes4 1/2 in
671B422A11KX-241DC Ammeter, Hi Shock0-2 A0-2 DC Amperes4 1/2 in
671B422A13KX-241DC Ammeter, Hi Shock0-5 A0-5 DC Amperes4 1/2 in
671B422A16KX-241DC Ammeter, Hi Shock0-15 A0-15 DC Amperes4 1/2 in
671B422A17KX-241DC Ammeter, Hi Shock0-20 A0-20 DC Amperes4 1/2 in
671B420A10KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-10 DC Amperes4 1/2 in
671B420A11KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-15 DC Amperes4 1/2 in
671B420A12KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-25 DC Amperes4 1/2 in
671B420A13KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-50 DC Amperes4 1/2 in
671B420A14KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-75 DC Amperes4 1/2 in
671B420A15KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-100 DC Amperes4 1/2 in
671B420A16KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-150 DC Amperes4 1/2 in
671B420A17KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-200 DC Amperes4 1/2 in
671B420A18KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-250 DC Amperes4 1/2 in
671B420A19KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-300 DC Amperes4 1/2 in
671B420A20KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-400 DC Amperes4 1/2 in
671B420A21KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-500 DC Amperes4 1/2 in
671B420A22KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-600 DC Amperes4 1/2 in
671B420A24KX-241DC Ammeter, Hi Shock - Shunt Rated50 mV0-1000 DC Amperes4 1/2 in
