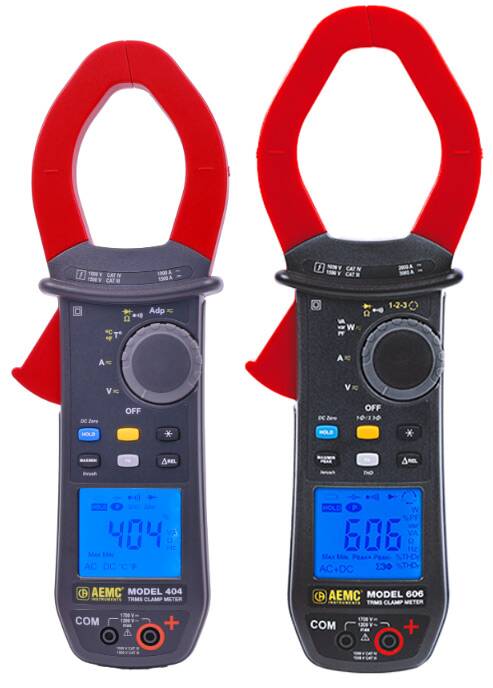

Clamp-On Meters – AEMC Model 404 & 606
Description

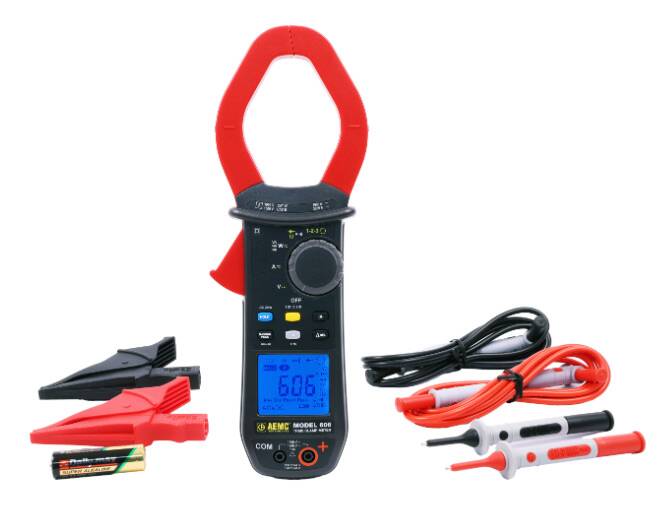

The Model 404 Clamp-On Multimeter makes current measurements up to 1000 A AC and 1500 A DC. The Model 606 Clamp-On Power Meter is rated to 2000A AC and 3000A DC. It also measures active power up to 2400kW AC and 5100kW DC. Both instruments measures AC Voltage up to 1200V and DC Voltage up to 1700V with 1000V CAT IV and 1500V CAT III safety ratings.
In addition to the standard measurements of volts, amps, frequency, resistance, diode checking, and continuity, these versatile instruments include many features to increase field productivity. An IP54 rating ensures resilience against dust and water spray, making them ideal for harsh industrial settings. The ergonomic design allows effortless one-handed operation. Function selection and button pushing can be easily accomplished even with gloves on.

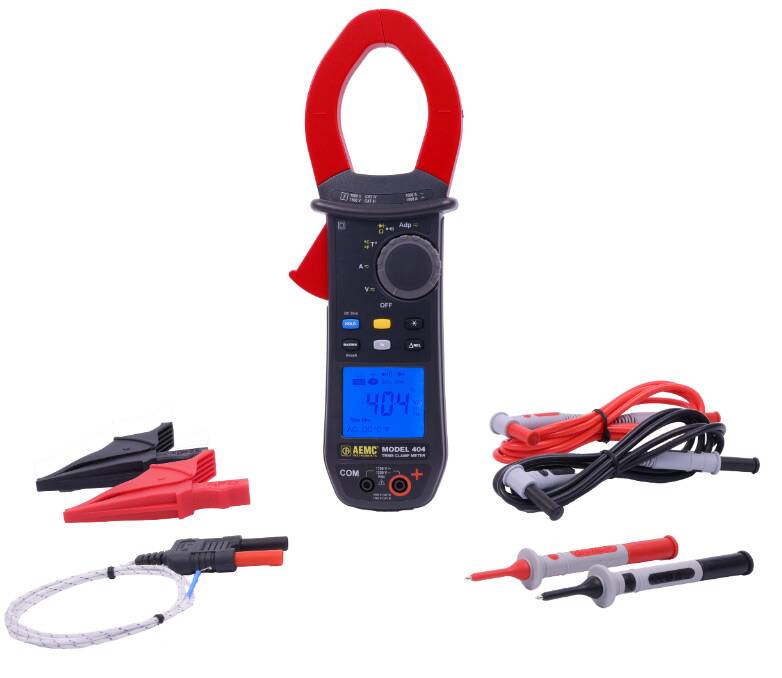

The Model 404 also includes a Type K thermocouple for temperature measurements.
- 1000 V CAT IV, 1500V CAT III rated
- 10,000-count electroluminescent backlit display
- Measures up to 1200V AC, 1700V DC, and 1200V AC+DC
- Measures up to 2000A AC and 3000A DC
- Measures W, VA, var and PF for single- and three-phase balanced systems (Model 606)
- Measures voltage frequency to 20 kHz with 0.1 Hz resolution
- Auto selects AC or DC measurement voltage
- True InRush® current measurement with 100 msec capture
- Jaw opening 1.90 in (48 mm) on Model 404, 2.36 in (60 mm) on Model 606
- K-thermocouple and adapter included (Model 404)
- IP54 environmental rating (dust and water spray)
| Item # | Description | Price |
|---|---|---|
| AE/2139.22 | AEMC Model 404 Clamp-On Meter 1200VAC, 1700VDC, 1000AAC, 1500ADC, Ohms, Temperature | $449.00 |
| AE/2139.62 | AEMC Model 606 Clamp-On Power Meter 1200VAC, 1700VDC, 2000AAC, 3000ADC, Ohms, THD | $495.00 |
