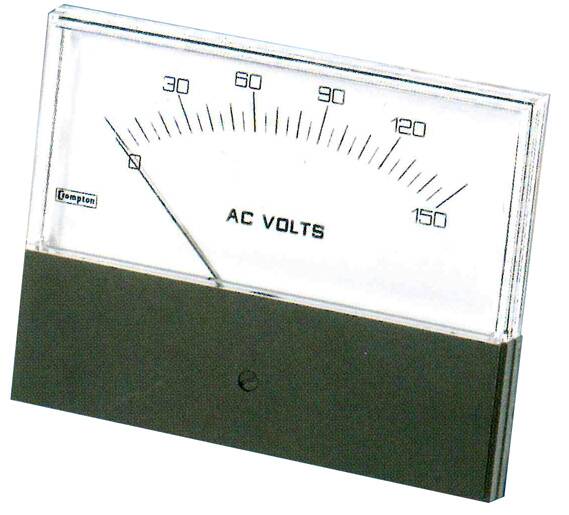

Challenger Series AC Voltmeters – Crompton

Description

The Challenger range of analog panel meters offers accurate measurement and indication of most electrical and electronic parameters in industry standard 1½”, 2½”, 3½” and 4½” case sizes. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.

These meters utilize a high torque pivot and jewel movement. AC moving coil rectified meters provide 1.5% accuracy of the full scale value and feature a rear zero adjuster screw for tamper-proof installation. AC moving iron meters also provide 1.5% high accuracy and true RMS measurement.

Accuracy: ±1.5% of Full Scale
Meets ANSI C39.1
Four Display Sizes: 1½”, 2½”, 3½”, and 4½”
Replacements for Yokogawa Horizon and Stylist series

Options

Custom Scaling
Custom Legends/Logos
Non-standard Ranges
Color Bands

Note: For 400Hz, change C7 in part number to C4

Catalog Page 63a Crompton-Challenger-new

Case Size (in)

Model

Range

Scale

Size (HxWxD)

Barrel (cutout)

Window (cutout)

Clear

SKU: N/A Categories: Analog Panel Meters, Crompton (Tyco), Voltmeters

Show Advanced Filters

products found

Item #	Case Size (in)	Model	Range	Scale	Size (HxWxD)
361-01WA-MTMT-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	10 Volts	10 Volts	1.8 x 2.3 x 1.8
362-01WA-MTMT-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	10 Volts	10 Volts	2.66 x 3.12 x 1.81
363-01WA-MTMT-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	10 Volts	10 Volts	3.32 x 3.89 x 1.83
364-01WA-MTMT-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	10 Volts	10 Volts	4.18 x 4.73 x 1.83
361-01WA-PKPK-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	100 Volts	100 Volts	1.8 x 2.3 x 1.8
362-01WA-PKPK-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	100 Volts	100 Volts	2.66 x 3.12 x 1.81
363-01WA-PKPK-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	100 Volts	100 Volts	3.32 x 3.89 x 1.83
364-01WA-PKPK-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	100 Volts	100 Volts	4.18 x 4.73 x 1.83
361-01WA-NDND-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	15 Volts	15 Volts	1.8 x 2.3 x 1.8
362-01WA-NDND-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	15 Volts	15 Volts	2.66 x 3.12 x 1.81
363-01WA-NDND-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	15 Volts	15 Volts	3.32 x 3.89 x 1.83
364-01WA-NDND-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	15 Volts	15 Volts	4.18 x 4.73 x 1.83
361-01WA-PZPZ-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	150 Volts	150 Volts	1.8 x 2.3 x 1.8
362-01WA-PZPZ-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	150 Volts	150 Volts	2.66 x 3.12 x 1.81
363-01WA-PZPZ-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	150 Volts	150 Volts	3.32 x 3.89 x 1.83
364-01WA-PZPZ-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	150 Volts	150 Volts	4.18 x 4.73 x 1.83
361-01WA-NGNG-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	20 Volts	20 Volts	1.8 x 2.3 x 1.8
362-01WA-NGNG-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	20 Volts	20 Volts	2.66 x 3.12 x 1.81
363-01WA-NGNG-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	20 Volts	20 Volts	3.32 x 3.89 x 1.83
364-01WA-NGNG-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	20 Volts	20 Volts	4.18 x 4.73 x 1.83
361-01WA-RLRL-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	200 Volts	200 Volts	1.8 x 2.3 x 1.8
362-01WA-RLRL-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	200 Volts	200 Volts	2.66 x 3.12 x 1.81
363-01WA-RLRL-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	200 Volts	200 Volts	3.32 x 3.89 x 1.83
364-01WA-RLRL-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	200 Volts	200 Volts	4.18 x 4.73 x 1.83
361-01WA-NJNJ-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	25 Volts	25 Volts	1.8 x 2.3 x 1.8
362-01WA-NJNJ-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	25 Volts	25 Volts	2.66 x 3.12 x 1.81
363-01WA-NJNJ-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	25 Volts	25 Volts	3.32 x 3.89 x 1.83
364-01WA-NJNJ-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	25 Volts	25 Volts	4.18 x 4.73 x 1.83
362-01WA-RSRS-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	250 Volts	250 Volts	2.66 x 3.12 x 1.81
361-01WA-RSRS-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	250 Volts	250 Volts	1.8 x 2.3 x 1.8
364-01WA-RSRS-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	250 Volts	250 Volts	4.18 x 4.73 x 1.83
363-01WA-RSRS-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	250 Volts	250 Volts	3.32 x 3.89 x 1.83
361-01WA-NLNL-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	30 Volts	30 Volts	1.8 x 2.3 x 1.8
362-01WA-NLNL-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	30 Volts	30 Volts	2.66 x 3.12 x 1.81
363-01WA-NLNL-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	30 Volts	30 Volts	3.32 x 3.89 x 1.83
364-01WA-NLNL-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	30 Volts	30 Volts	4.18 x 4.73 x 1.83
361-01WA-RXRX-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	300 Volts	300 Volts	1.8 x 2.3 x 1.8
362-01WA-RXRX-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	300 Volts	300 Volts	2.66 x 3.12 x 1.81
363-01WA-RXRX-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	300 Volts	300 Volts	3.32 x 3.89 x 1.83
364-01WA-RXRX-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	300 Volts	300 Volts	4.18 x 4.73 x 1.83
362-01WA-NTNT-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	50 Volts	50 Volts	2.66 x 3.12 x 1.81
361-01WA-NTNT-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	50 Volts	50 Volts	1.8 x 2.3 x 1.8
363-01WA-NTNT-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	50 Volts	50 Volts	3.32 x 3.89 x 1.83
364-01WA-NTNT-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	50 Volts	50 Volts	4.18 x 4.73 x 1.83
362-01WA-PDPD-C7	2-1/2	Challenger - AC Voltmeter - Rectifier Type	80 Volts	80 Volts	2.66 x 3.12 x 1.81
361-01WA-PDPD-C7	1-1/2	Challenger - AC Voltmeter - Rectifier Type	80 Volts	80 Volts	1.8 x 2.3 x 1.8
363-01WA-PDPD-C7	3-1/2	Challenger - AC Voltmeter - Rectifier Type	80 Volts	80 Volts	3.32 x 3.89 x 1.83
364-01WA-PDPD-C7	4-1/2	Challenger - AC Voltmeter - Rectifier Type	80 Volts	80 Volts	4.18 x 4.73 x 1.83
362-02VA-MTMT-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	10 Volts	10 Volts	2.66 x 3.12 x 1.81
363-02VA-MTMT-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	10 Volts	10 Volts	3.32 x 3.89 x 1.83
362-02VA-PKPK-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	100 Volts	100 Volts	2.66 x 3.12 x 1.81
364-02VA-MTMT-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	10 Volts	10 Volts	4.18 x 4.73 x 1.83
363-02VA-PKPK-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	100 Volts	100 Volts	3.32 x 3.89 x 1.83
364-02VA-PKPK-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	100 Volts	100 Volts	4.18 x 4.73 x 1.83
362-02VA-NDND-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	15 Volts	15 Volts	2.66 x 3.12 x 1.81
363-02VA-NDND-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	15 Volts	15 Volts	3.32 x 3.89 x 1.83
362-02VA-PZPZ-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	150 Volts	150 Volts	2.66 x 3.12 x 1.81
364-02VA-PZPZ-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	150 Volts	150 Volts	4.18 x 4.73 x 1.83
364-02VA-NDND-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	15 Volts	15 Volts	4.18 x 4.73 x 1.83
363-02VA-PZPZ-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	150 Volts	150 Volts	3.32 x 3.89 x 1.83
363-02VA-NLNL-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	30 Volts	30 Volts	3.32 x 3.89 x 1.83
364-02VA-NLNL-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	30 Volts	30 Volts	4.18 x 4.73 x 1.83
362-02VA-NLNL-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	30 Volts	30 Volts	2.66 x 3.12 x 1.81
362-02VA-RXRX-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	300 Volts	300 Volts	2.66 x 3.12 x 1.81
363-02VA-RXRX-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	300 Volts	300 Volts	3.32 x 3.89 x 1.83
364-02VA-RXRX-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	300 Volts	300 Volts	4.18 x 4.73 x 1.83
362-02VA-NTNT-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	50 Volts	50 Volts	2.66 x 3.12 x 1.81
363-02VA-NTNT-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	50 Volts	50 Volts	3.32 x 3.89 x 1.83
363-02VA-SFSF-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	500 Volts	500 Volts	3.32 x 3.89 x 1.83
364-02VA-NTNT-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	50 Volts	50 Volts	4.18 x 4.73 x 1.83
364-02VA-SFSF-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	500 Volts	500 Volts	4.18 x 4.73 x 1.83
362-02VA-SFSF-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	500 Volts	500 Volts	2.66 x 3.12 x 1.81
363-02VA-SJSJ-C7	3-1/2	Challenger - AC Voltmeter - Self Contained	600 Volts	600 Volts	3.32 x 3.89 x 1.83
362-02VA-PZPZJ-C7	2-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	150 Volts	2.66 x 3.12 x 1.81
362-02VA-SJSJ-C7	2-1/2	Challenger - AC Voltmeter - Self Contained	600 Volts	600 Volts	2.66 x 3.12 x 1.81
364-02VA-SJSJ-C7	4-1/2	Challenger - AC Voltmeter - Self Contained	600 Volts	600 Volts	4.18 x 4.73 x 1.83
363-02VA-PZPZJ-C7	3-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	150 Volts	3.32 x 3.89 x 1.83
364-02VA-PZPZJ-C7	4-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	150 Volts	4.18 x 4.73 x 1.83
363-02VA-PZUA-C7	3-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	3 kV	3.32 x 3.89 x 1.83
362-02VA-PZUA-C7	2-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	3 kV	2.66 x 3.12 x 1.81
362-02VA-PZRXJ-C7	2-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	300 Volts	2.66 x 3.12 x 1.81
364-02VA-PZUA-C7	4-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	3 kV	4.18 x 4.73 x 1.83
363-02VA-PZRXJ-C7	3-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	300 Volts	3.32 x 3.89 x 1.83
364-02VA-PZRXJ-C7	4-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	300 Volts	4.18 x 4.73 x 1.83
363-02VA-PZSJJ-C7	3-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	600 Volts	3.32 x 3.89 x 1.83
364-02VA-PZSJJ-C7	4-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	600 Volts	4.18 x 4.73 x 1.83
363-02VA-PZSMJ-C7	3-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	750 Volts	3.32 x 3.89 x 1.83
362-02VA-PZSJJ-C7	2-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	600 Volts	2.66 x 3.12 x 1.81
362-02VA-PZSMJ-C7	2-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	750 Volts	2.66 x 3.12 x 1.81
364-02VA-PZSMJ-C7	4-1/2	Challenger - AC Voltmeter - Transformer Rated	150 Volts	750 Volts	4.18 x 4.73 x 1.83
