Challenger Series AC Ammeters – Crompton

Description

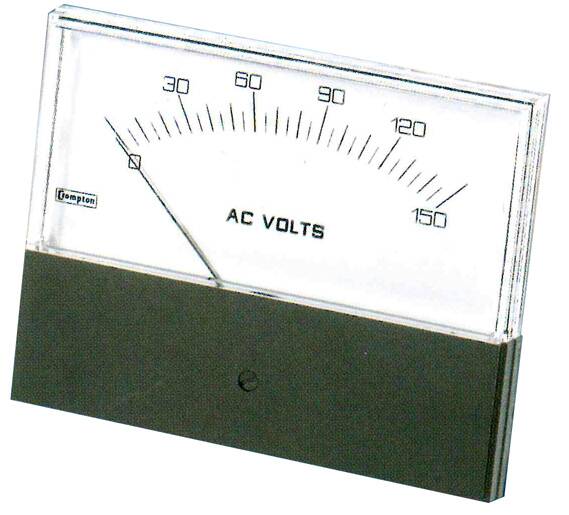

Crompton Challenger ACV
click to view larger image

The Challenger range of analog panel meters offers accurate measurement and an indication of most electrical and electronic parameters in industry standard 1½”, 2½”, 3½” and 4½” case sizes. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.

These meters utilizing a high torque pivot and jewel movement. AC moving coil rectified meters provide 1.5% accuracy of the full scale value and feature a rear zero adjuster screw for tamper-proof installation. AC moving iron meters also provide 1.5% high accuracy and true RMS measurement.

  • Accuracy: ±1.5% of Full Scale
  • Meets ANSI C39.1
  • Four Display Sizes: 1½”, 2½”, 3½”, and 4½”
  • Replacements for Yokogawa Horizon and Stylist series

Options

  • Custom Scaling
  • Custom Legends/Logos
  • Non-standard Ranges
  • Color Bands

Note: For 400Hz, change C7 in part number to C4

Catalog Page 63a                          Crompton-Challenger-new

SKU: N/A Categories: , ,
Show Advanced Filters

products found
Item # Model Case Size (in) Range Scale Size (HxWxD)
362-02AA-LALA-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/21 Amp1 Amp2.66 x 3.12 x 1.81
363-02AA-LALA-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/21 Amp1 Amp3.32 x 3.89 x 1.83
364-02AA-LALA-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/21 Amp1 Amp4.18 x 4.73 x 1.83
362-02AA-MTMT-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/210 Amp10 Amp2.66 x 3.12 x 1.81
363-02AA-MTMT-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/210 Amp10 Amp3.32 x 3.89 x 1.83
364-02AA-MTMT-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/210 Amp10 Amp4.18 x 4.73 x 1.83
362-02AA-NDND-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/215 Amp15 Amp2.66 x 3.12 x 1.81
363-02AA-NDND-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/215 Amp15 Amp3.32 x 3.89 x 1.83
364-02AA-NDND-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/215 Amp15 Amp4.18 x 4.73 x 1.83
362-02AA-NGNG-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/220 Amp20 Amp2.66 x 3.12 x 1.81
363-02AA-NGNG-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/220 Amp20 Amp3.32 x 3.89 x 1.83
364-02AA-NGNG-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/220 Amp20 Amp4.18 x 4.73 x 1.83
362-02AA-LJLJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/23 Amp3 Amp2.66 x 3.12 x 1.81
363-02AA-LJLJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/23 Amp3 Amp3.32 x 3.89 x 1.83
364-02AA-LJLJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/23 Amp3 Amp4.18 x 4.73 x 1.83
362-02AA-NLNL-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/230 Amp30 Amp2.66 x 3.12 x 1.81
363-02AA-NLNL-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/230 Amp30 Amp3.32 x 3.89 x 1.83
364-02AA-NLNL-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/230 Amp30 Amp4.18 x 4.73 x 1.83
362-02AA-LSLS-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/25 Amp5 Amp2.66 x 3.12 x 1.81
363-02AA-LSLS-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/25 Amp5 Amp3.32 x 3.89 x 1.83
364-02AA-LSLS-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/25 Amp5 Amp4.18 x 4.73 x 1.83
362-02AA-NTNT-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/250 Amp50 Amp2.66 x 3.12 x 1.81
363-02AA-NTNT-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/250 Amp50 Amp3.32 x 3.89 x 1.83
362-02AA-MJMJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron2-1/28 Amp8 Amp2.66 x 3.12 x 1.81
364-02AA-NTNT-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/250 Amp50 Amp4.18 x 4.73 x 1.83
364-02AA-MJMJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron4-1/28 Amp8 Amp4.18 x 4.73 x 1.83
363-02AA-MJMJ-C7Challenger - AC Ammeter - Self Contained - Moving Iron3-1/28 Amp8 Amp3.32 x 3.89 x 1.83
363-02AA-LSMT-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp10 Amp3.32 x 3.89 x 1.83
362-02AA-LSMT-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp10 Amp2.66 x 3.12 x 1.81
364-02AA-LSMT-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp10 Amp4.18 x 4.73 x 1.83
362-02AA-LSPK-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp100 Amp2.66 x 3.12 x 1.81
363-02AA-LSPK-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp100 Amp3.32 x 3.89 x 1.83
364-02AA-LSPK-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp100 Amp4.18 x 4.73 x 1.83
363-02AA-LSSS-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp1000 Amp3.32 x 3.89 x 1.83
362-02AA-LSSS-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp1000 Amp2.66 x 3.12 x 1.81
364-02AA-LSSS-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp1000 Amp4.18 x 4.73 x 1.83
362-02AA-LSND-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp15 Amp2.66 x 3.12 x 1.81
363-02AA-LSND-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp15 Amp3.32 x 3.89 x 1.83
364-02AA-LSND-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp15 Amp4.18 x 4.73 x 1.83
362-02AA-LSPZ-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp150 Amp2.66 x 3.12 x 1.81
363-02AA-LSPZ-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp150 Amp3.32 x 3.89 x 1.83
362-02AA-LSNG-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp20 Amp2.66 x 3.12 x 1.81
364-02AA-LSNG-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp20 Amp4.18 x 4.73 x 1.83
364-02AA-LSPZ-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp150 Amp4.18 x 4.73 x 1.83
363-02AA-LSNG-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp20 Amp3.32 x 3.89 x 1.83
362-02AA-LSRL-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp200 Amp2.66 x 3.12 x 1.81
363-02AA-LSRL-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp200 Amp3.32 x 3.89 x 1.83
362-02AA-LSNL-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp30 Amp2.66 x 3.12 x 1.81
364-02AA-LSRL-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp200 Amp4.18 x 4.73 x 1.83
364-02AA-LSNL-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp30 Amp4.18 x 4.73 x 1.83
362-02AA-LSRX-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp300 Amp2.66 x 3.12 x 1.81
363-02AA-LSRX-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp300 Amp3.32 x 3.89 x 1.83
363-02AA-LSNL-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp30 Amp3.32 x 3.89 x 1.83
363-02AA-LSNP-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp40 Amp3.32 x 3.89 x 1.83
362-02AA-LSNP-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp40 Amp2.66 x 3.12 x 1.81
364-02AA-LSRX-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp300 Amp4.18 x 4.73 x 1.83
364-02AA-LSNP-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp40 Amp4.18 x 4.73 x 1.83
364-02AA-LSSC-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp400 Amp4.18 x 4.73 x 1.83
362-02AA-LSNT-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp50 Amp2.66 x 3.12 x 1.81
363-02AA-LSSC-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp400 Amp3.32 x 3.89 x 1.83
362-02AA-LSSC-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp400 Amp2.66 x 3.12 x 1.81
362-02AA-LSSF-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp500 Amp2.66 x 3.12 x 1.81
363-02AA-LSSF-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp500 Amp3.32 x 3.89 x 1.83
364-02AA-LSNT-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp50 Amp4.18 x 4.73 x 1.83
363-02AA-LSNT-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp50 Amp3.32 x 3.89 x 1.83
364-02AA-LSSF-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp500 Amp4.18 x 4.73 x 1.83
364-02AA-LSSJ-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp600 Amp4.18 x 4.73 x 1.83
363-02AA-LSSJ-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp600 Amp3.32 x 3.89 x 1.83
362-02AA-LSSJ-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp600 Amp2.66 x 3.12 x 1.81
363-02AA-LSPB-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp75 Amp3.32 x 3.89 x 1.83
362-02AA-LSPB-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp75 Amp2.66 x 3.12 x 1.81
364-02AA-LSPB-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp75 Amp4.18 x 4.73 x 1.83
362-02AA-LSPD-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp80 Amp2.66 x 3.12 x 1.81
363-02AA-LSPD-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp80 Amp3.32 x 3.89 x 1.83
362-02AA-LSSN-C7Challenger - AC Ammeter - Transformer Rated2-1/25 Amp800 Amp2.66 x 3.12 x 1.81
364-02AA-LSPD-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp80 Amp4.18 x 4.73 x 1.83
363-02AA-LSSN-C7Challenger - AC Ammeter - Transformer Rated3-1/25 Amp800 Amp3.32 x 3.89 x 1.83
361-01BA-GZGZ-C7Challenger - AC Milliammeter - Rectifier Type1-1/210 mA10 mA1.8 x 2.3 x 1.8
364-02AA-LSSN-C7Challenger - AC Ammeter - Transformer Rated4-1/25 Amp800 Amp4.18 x 4.73 x 1.83
362-01BA-GZGZ-C7Challenger - AC Milliammeter - Rectifier Type2-1/210 mA10 mA2.66 x 3.12 x 1.81
363-01BA-GZGZ-C7Challenger - AC Milliammeter - Rectifier Type3-1/210 mA10 mA3.32 x 3.89 x 1.83
364-01BA-GZGZ-C7Challenger - AC Milliammeter - Rectifier Type4-1/210 mA10 mA4.18 x 4.73 x 1.83
361-01BA-JRJR-C7Challenger - AC Milliammeter - Rectifier Type1-1/2100 mA100 mA1.8 x 2.3 x 1.8
363-01BA-JRJR-C7Challenger - AC Milliammeter - Rectifier Type3-1/2100 mA100 mA3.32 x 3.89 x 1.83
362-01BA-JRJR-C7Challenger - AC Milliammeter - Rectifier Type2-1/2100 mA100 mA2.66 x 3.12 x 1.81
364-01BA-JRJR-C7Challenger - AC Milliammeter - Rectifier Type4-1/2100 mA100 mA4.18 x 4.73 x 1.83
363-01BA-JXJX-C7Challenger - AC Milliammeter - Rectifier Type3-1/2150 mA150 mA3.32 x 3.89 x 1.83
362-01BA-JXJX-C7Challenger - AC Milliammeter - Rectifier Type2-1/2150 mA150 mA2.66 x 3.12 x 1.81
361-01BA-JXJX-C7Challenger - AC Milliammeter - Rectifier Type1-1/2150 mA150 mA1.8 x 2.3 x 1.8
361-01BA-HFHF-C7Challenger - AC Milliammeter - Rectifier Type1-1/220 mA20 mA1.8 x 2.3 x 1.8
363-01BA-HFHF-C7Challenger - AC Milliammeter - Rectifier Type3-1/220 mA20 mA3.32 x 3.89 x 1.83
362-01BA-HFHF-C7Challenger - AC Milliammeter - Rectifier Type2-1/220 mA20 mA2.66 x 3.12 x 1.81
364-01BA-JXJX-C7Challenger - AC Milliammeter - Rectifier Type4-1/2150 mA150 mA4.18 x 4.73 x 1.83
361-01BA-KAKA-C7Challenger - AC Milliammeter - Rectifier Type1-1/2200 mA200 mA1.8 x 2.3 x 1.8
362-01BA-KAKA-C7Challenger - AC Milliammeter - Rectifier Type2-1/2200 mA200 mA2.66 x 3.12 x 1.81
364-01BA-HFHF-C7Challenger - AC Milliammeter - Rectifier Type4-1/220 mA20 mA4.18 x 4.73 x 1.83
363-01BA-KAKA-C7Challenger - AC Milliammeter - Rectifier Type3-1/2200 mA200 mA3.32 x 3.89 x 1.83
361-01BA-FXFX-C7Challenger - AC Milliammeter - Rectifier Type1-1/25 mA5 mA1.8 x 2.3 x 1.8
363-01BA-FXFX-C7Challenger - AC Milliammeter - Rectifier Type3-1/25 mA5 mA3.32 x 3.89 x 1.83
364-01BA-KAKA-C7Challenger - AC Milliammeter - Rectifier Type4-1/2200 mA200 mA4.18 x 4.73 x 1.83
362-01BA-FXFX-C7Challenger - AC Milliammeter - Rectifier Type2-1/25 mA5 mA2.66 x 3.12 x 1.81
364-01BA-FXFX-C7Challenger - AC Milliammeter - Rectifier Type4-1/25 mA5 mA4.18 x 4.73 x 1.83
361-01BA-HYHY-C7Challenger - AC Milliammeter - Rectifier Type1-1/250 mA50 mA1.8 x 2.3 x 1.8
363-01BA-HYHY-C7Challenger - AC Milliammeter - Rectifier Type3-1/250 mA50 mA3.32 x 3.89 x 1.83
362-01BA-HYHY-C7Challenger - AC Milliammeter - Rectifier Type2-1/250 mA50 mA2.66 x 3.12 x 1.81
363-01BA-KMKM-C7Challenger - AC Milliammeter - Rectifier Type3-1/2500 mA500 mA3.32 x 3.89 x 1.83
361-01BA-KMKM-C7Challenger - AC Milliammeter - Rectifier Type1-1/2500 mA500 mA1.8 x 2.3 x 1.8
364-01BA-HYHY-C7Challenger - AC Milliammeter - Rectifier Type4-1/250 mA50 mA4.18 x 4.73 x 1.83
362-01BA-KMKM-C7Challenger - AC Milliammeter - Rectifier Type2-1/2500 mA500 mA2.66 x 3.12 x 1.81
361-01BA-JDJD-C7Challenger - AC Milliammeter - Rectifier Type1-1/275 mA75 mA1.8 x 2.3 x 1.8
364-01BA-KMKM-C7Challenger - AC Milliammeter - Rectifier Type4-1/2500 mA500 mA4.18 x 4.73 x 1.83
362-01BA-JDJD-C7Challenger - AC Milliammeter - Rectifier Type2-1/275 mA75 mA2.66 x 3.12 x 1.81
363-01BA-JDJD-C7Challenger - AC Milliammeter - Rectifier Type3-1/275 mA75 mA3.32 x 3.89 x 1.83
363-01BA-JJJJ-C7Challenger - AC Milliammeter - Rectifier Type3-1/280 mA80 mA3.32 x 3.89 x 1.83
361-01BA-JJJJ-C7Challenger - AC Milliammeter - Rectifier Type1-1/280 mA80 mA1.8 x 2.3 x 1.8
362-01BA-JJJJ-C7Challenger - AC Milliammeter - Rectifier Type2-1/280 mA80 mA2.66 x 3.12 x 1.81
364-01BA-JDJD-C7Challenger - AC Milliammeter - Rectifier Type4-1/275 mA75 mA4.18 x 4.73 x 1.83
364-01BA-JJJJ-C7Challenger - AC Milliammeter - Rectifier Type4-1/280 mA80 mA4.18 x 4.73 x 1.83
