BT2 Batch Controller – KEP
Description

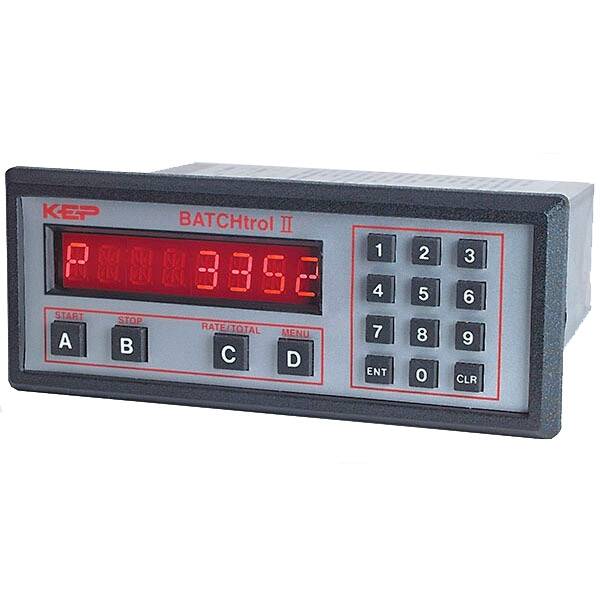

The KEP BATCHtrol II has two separate counters and a ratemeter in one compact unit. The “batching” counter counts to prewarn and preset numbers entered by the user and enables separate control outputs. The “totalizing” counter gives a cumulative reading or grand total. The ratemeter counts the number of pulses per second and, with its scaling feature, can provide gallons per minute or any other rate measurement without the totalizer losing counts. At any time, the user may view the total, the grand total or the rate while never interrupting the counting process.
Featuring 8 digits of bright, 0.55 inch, alphanumeric display, the BATCHtrol II can accept up to 20,000 digital pulses per second or analog inputs such as 4 to 20 mA or 1 to 5V. The standard unit has two separate, 8 digit, floating decimal, “K” factors to convert the inputs to meaningful total and rate data. An optional 16 point K-factor can linearize flow from non-linear meter outputs. The user, with the push of a button, can toggle back and forth to view the total of the batch, the rate of flow or the grand total of flow.
Setup is done through the front panel and the menu driven software in the unit. Start-Stop control can be activated via the front panel buttons or remote inputs.
• Start/Stop Buttons & Remote Inputs
• Separate 8 Digit K-Factors For Rate & Total
• Accepts Pulse or Analog Inputs
• Displays Rate, Total and Grand Total
• 2 Setpoints For Two Stage Valve Control
• Security Lockout with Missing Pulse Detection
• Scaled Pulse Output
• Two Way RS232/422 Communications Option
• NEMA 4X (IP65) Front Panel
