API Universal Transmitter – Process & Temperature to DC – APD 8000 Series

Description

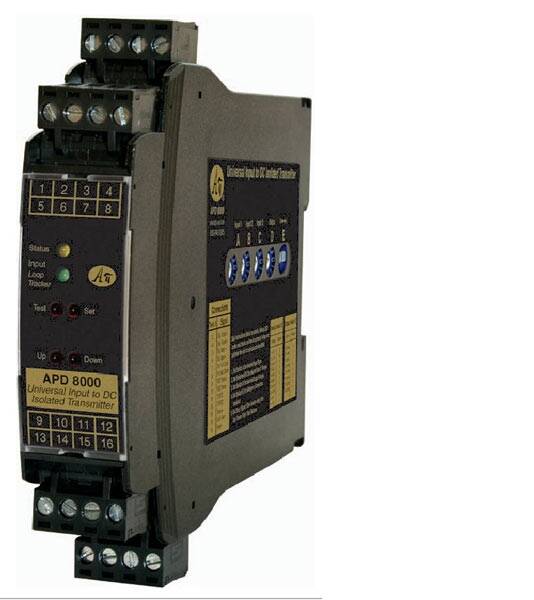

click to view larger image

The APD 8000 accepts a DC, potentiometer, thermocouple, RTD or thermistor input and provides an optically isolated & linearized DC voltage or current output. Sensor type, temperature range and output range are field configurable. Linearization uses 41-55 segments or up to a 14th order polynomial.

• One Model for All Common Sensors
• Zero & Span for Output
• 1200V Isolation
• Input Loop Tracker LED
• Output Test Function
• Loop Supply for Sink/Source Output
• Made in USA, Lifetime Warranty

Catalog Page 81b                    API-APD8000-Datasheet

Options – add suffix to model number:
U                 Conformal coating for moisture resistance
R                 Reverse acting output (factory set only)
NC5            5 point NIST traceable calibration
NC11          11 point NIST traceable calibration
Accessories – order as a separate line item:
API BP4      Spare removable 4 terminal plug
API TK36    DIN rail, 35 mm W x 39″ L, aluminum
