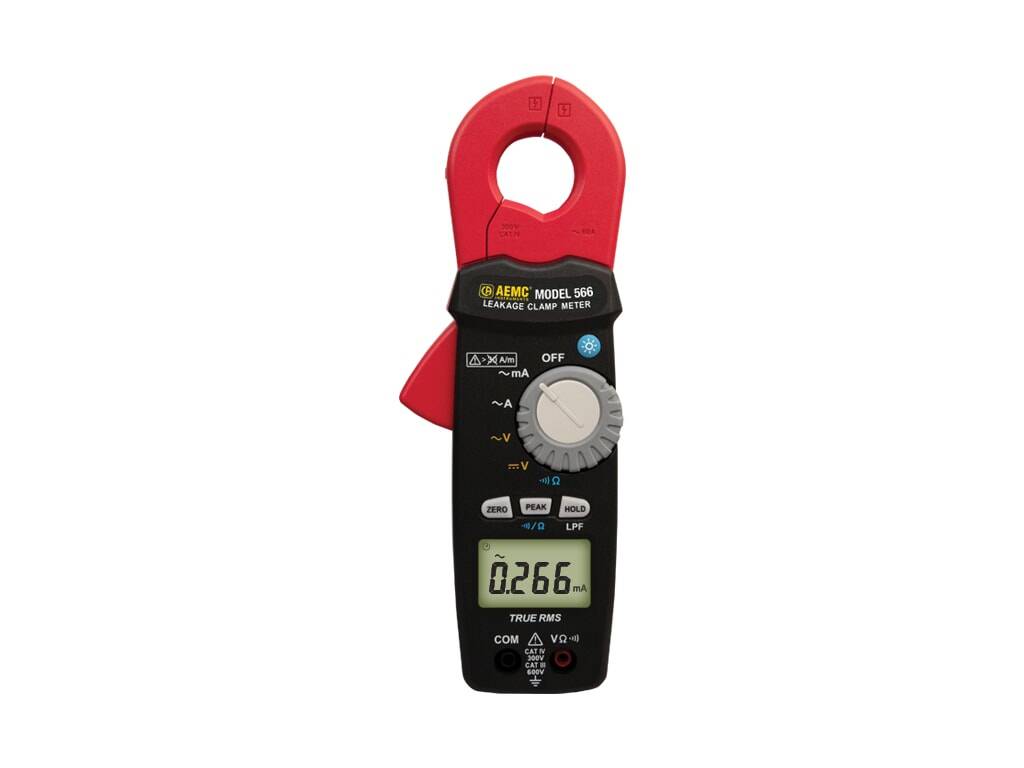

AEMC TRMS Clamp-On Leakage Current Meter – Model 566
Description
The AEMC TRMS Clamp-On Leakage Current Meter Model 566 is designed to measure low AC currents, which are typically leakage currents in ground conductors. Low currents are measured in the 60mA and 600mA ranges. The high sensitivity of the probe (1µA, 10µA, and 100µA) resolution when measuring mA is possible through special jaw construction and, in particular, critical shielding of the jaws. At low measurement levels, shielding out noise is critical for low sensitivity, accuracy, and stability.
The Model 566 can be used as a standard clamp-on meter measuring to 60Arms, as well as VAC and VDC ranges, resistance, and continuity with a buzzer. In mAAC and AAC, the user can activate a low-pass filter (LPF) to ignore all currents other than 50/60Hz. In this mode, only the fundamental signal is measured.
The Model 566 is ergonomic in design and fits well in the hand, facilitating one hand operation. The jaw size is compact yet designed to accommodate the most common conductors up to 0.91″ in diameter.
FEATURES

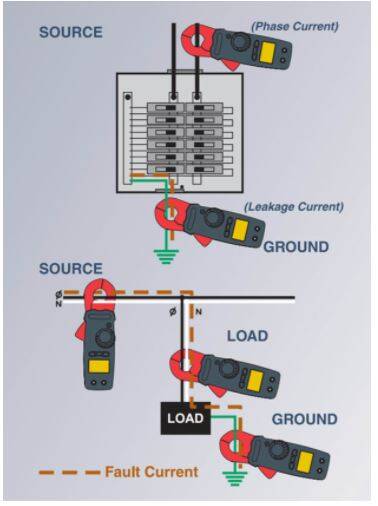

- Check for leakage and locate insulation breakdowns on live circuits
- Measures leakage current down to 0.001mA with up to 1μA resolution
- Measures current up to 60Arms
- Measures up to 600Vac/dc
- Measures Hz on either V or A inputs
- Measures resistance and continuity
- Hold feature freezes value
- MAX feature keeps track of highest measured in-rush value
- Zero button ideal for measuring relative values
- Low pass filter to isolate 50/60Hz fundamental from harmonics
- Compatible with VDE 0404
- Backlight LCD display
INCLUDES
- Clamp-on leakage current meter
- Soft carrying case
- (x2) color-coded (red/black) 5 ft test leads
- (x2) 1.5V AAA (LR03) batteries
- User manual
Downloads
| Item # | Description | Price |
|---|---|---|
| AE/2139.83 | AEMC Model 566 - Clamp-on Leakage Current Meter | $375.00 |
