AEMC 4000/6000 Count Multimeters – 5000 Series

Description

click to view larger image

The AEMC 5000 Series portable hand-held multimeters are compact and simple to use, these multimeters have a large backlit display and non-contact voltage detection. They measure a variety of electrical and physical quantities with high accuracy 4000/6000 count LCD displays. They are ideal for electrical installers, electricians and heating or air-conditioning specialists.

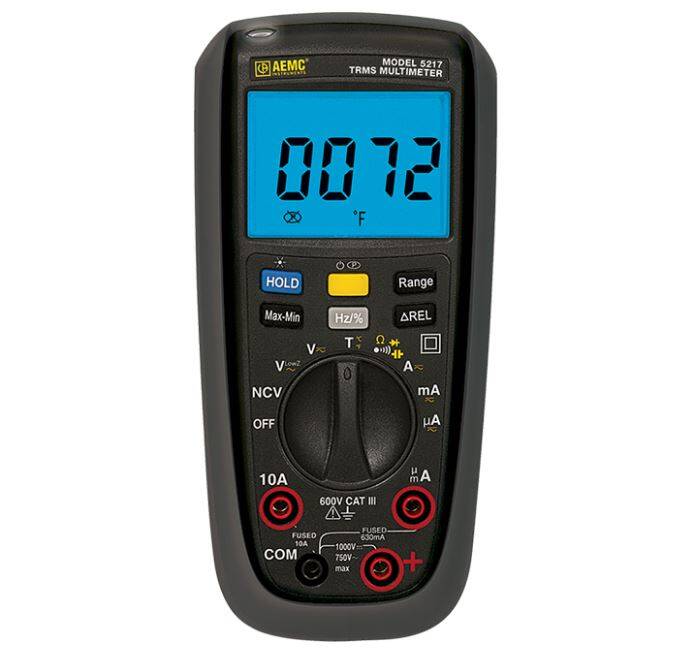

5212, 5217 Features

• True RMS (TRMS)
• Non-Contact Voltage detection
• Low input impedance voltage measurement (VLowZ) to help prevent “ghost” voltage from affecting the measurement
• HOLD function
• MAX/MIN function displays the maximum and minimum readings detected during a measurement session
• Δ REL compares measurements to a user selected reference value.
• Auto/Manual range selection
• Backlight and flashlight
• Multiple mounting options (stand, slot, magnet)
• Sleep Mode for extending battery life

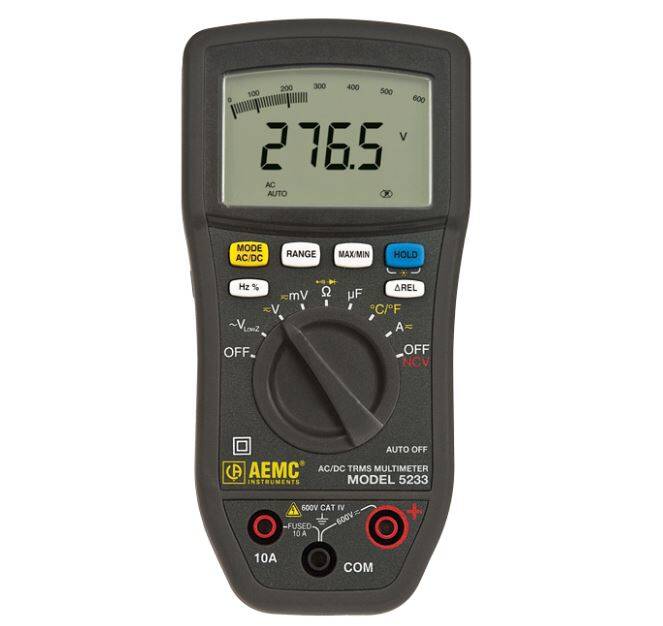

5231, 5233 Features

• Non-electrical contact detection of network voltage (NCV Function)
• High sensitivity with a resolution of 0.01mV
• AC voltmeter with low input impedance (voltage measurements for electricity and electrical engineering)
• AC/DC voltmeter with high input impedance (voltage measurements for electronics)
• Ohmmeter, Continuity test with buzzer, Diode test and Capacitance functions
• Frequency and Duty Cycle measurements
• Withstands overloads up to 8000V
• VLowZ function detects the presence of ghost voltage by placing a burden on the circuit
• Multi-position mounting for a hands-free work environment
• IEC/EN 61010-1, 1000V CAT III, 600V CAT IV
