AC Voltage Analog Switchboard Meters – Weschler

Description

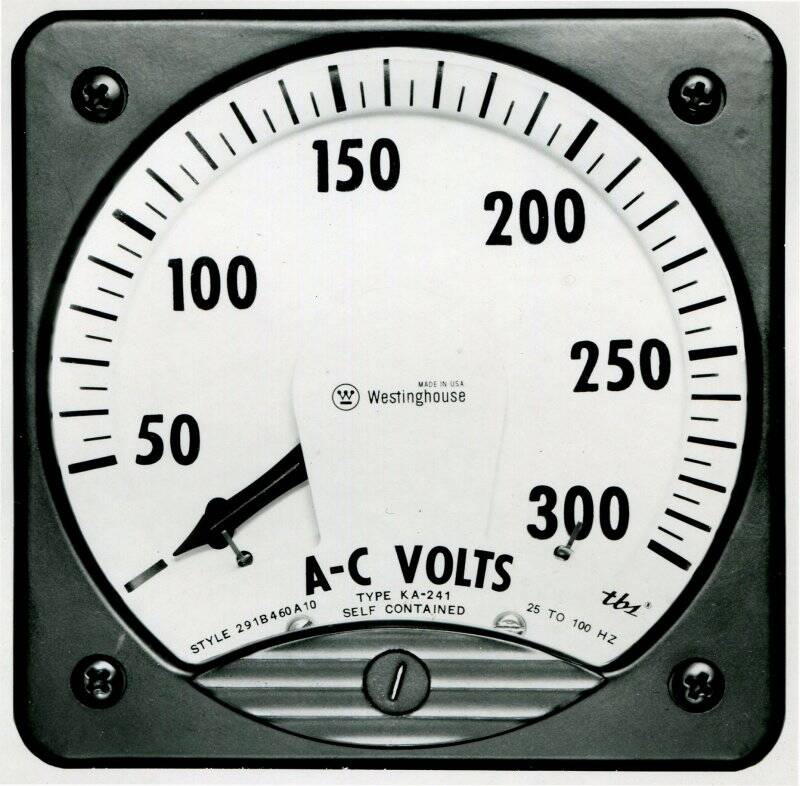

AC Voltage Analog Switchboard Meter
click to view larger image

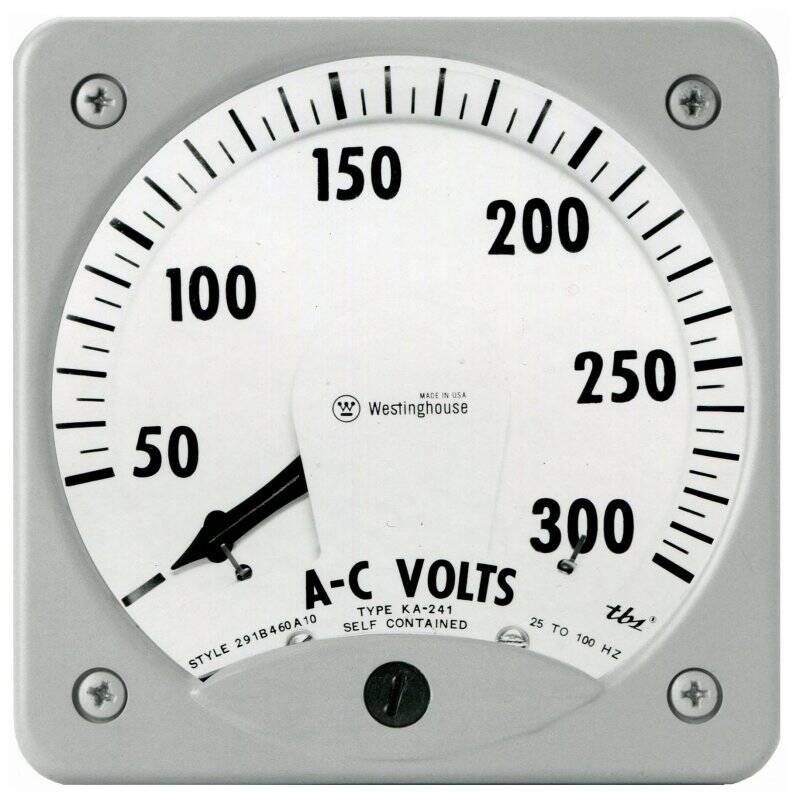

Hishock Switchboard Meter

Weschler 4½” (KA-241, KC-241) & 8¾” (KA-261, KC-261) instruments are designed to achieve the ultimate in reliability and performance. These instruments are recommended for use on electric utility switchboards and industrial process control panels. Commercial instruments comply with ANSI Standard C39.1 for 1% class switchboard instruments. The Hi-Shock versions were developed to meet the special needs of U.S. Navy shipboard applications. They are also suitable for commercial, marine and industrial applications subjected to humid conditions or severe mechanical shocks.

  • High accuracy, full view design
  • Volts, amps, watts, vars, speed, frequency and power factor
  • High overload capacity
  • Ruggedized (High Shock) versions
  • Ultimate in reliability and performance
  • Special scales and calibration
  • Formerly Westinghouse brand
Weschler SWBD specs

Modifications available on request for KA241, KC241, KA261, KC261: white on black dial, dual scale, special colors, illumination, special calibration and custom ranges.

Catalog Page 043              K241-K261-Datasheet              Style-Listings-Switchboard

Downloads

SKU: N/A Categories: , , , , ,
Show Advanced Filters

products found
Item # Model Type Rating Standard Scale Case Size
291B460A09KA-241AC Volts, Self-Contained150V0-150 AC Volts4 1/2 in
714B320A13KC-261AC Volts, Rectifier, Self-Contained100 V0-100 AC Volts8 3/4 in
714B320A15KC-261AC Volts, Rectifier, Self-Contained300 V0-300 AC Volts8 3/4 in
714B320A16KC-261AC Volts, Rectifier, Self-Contained600 V0-18 AC Kilovolts8 3/4 in
291B460A10KA-241AC Volts, Self-Contained300 V0-300 AC Volts4 1/2 in
291B460A11KA-241AC Volts, Self-Contained600 V0-600 AC Volts4 1/2 in
291B462A14KA-241AC Volts, Transformer-Rated150V0-300 AC Volts4 1/2 in
291B462A09KA-241AC Volts, Transformer-Rated150V0-600 AC Volts4 1/2 in
291B462A10KA-241AC Volts, Transformer-Rated150V0-3000 AC Volts4 1/2 in
291B462A11KA-241AC Volts, Transformer-Rated143 V0-5000 AC Volts4 1/2 in
291B462A12KA-241AC Volts, Transformer-Rated150V0-15 AC Kilovolts4 1/2 in
291B462A13KA-241AC Volts, Transformer-Rated150V0-18 AC Kilovolts4 1/2 in
291B460A15KA-241AC Volts, Transformer-Rated125 VSpecify4 1/2 in
291B460A08KA-241AC Volts, Transformer-Rated143 VSpecify4 1/2 in
291B460A12KA-241AC Volts, Transformer-Rated150VSpecify4 1/2 in
714B461A09KC-241AC Volts, Expanded Scale (Zener), Self-Contained90-130 V90-130 AC Volts4 1/2 in
714B461A10KC-241AC Volts, Expanded Scale (Zener), Self-Contained100-140 V100-140 AC Volts4 1/2 in
714B461A12KC-241AC Volts, Expanded Scale (Zener), Self-Contained110-130 V110-130 AC Volts4 1/2 in
714B461A17KC-241AC Volts, Expanded Scale (Zener), Self-Contained105-125 V105-125 AC Volts4 1/2 in
691B229A09KC-241AC Volts, Expanded Scale (Zener), Self-Contained90-130 V90-130 AC Volts4 1/2 in
691B229A10KC-241AC Volts, Expanded Scale (Zener), Self-Contained110-130 V110-130 AC Volts4 1/2 in
714B317A09KC-241AC Volts, Rectifier, Self-Contained5 V0-5 AC Volts4 1/2 in
714B317A11KC-241AC Volts, Rectifier, Self-Contained20 V0-20 AC Volts4 1/2 in
714B317A12KC-241AC Volts, Rectifier, Self-Contained50 V0-50 AC Volts4 1/2 in
714B317A14KC-241AC Volts, Rectifier, Self-Contained150V0-150 AC Volts4 1/2 in
292B642A09KA-261AC Volts, Self-Contained150V0-150 AC Volts8 3/4 in
292B642A10KA-261AC Volts, Self-Contained300 V0-300 AC Volts8 3/4 in
292B642A11KA-261AC Volts, Self-Contained20 V0-20 AC Volts8 3/4 in
292B642A08KA-261AC Volts, Transformer-Rated143 VSpecify8 3/4 in
292B642A12KA-261AC Volts, Transformer-Rated150VSpecify8 3/4 in
714B503A09KC-261AC Volts, Expanded Scale (Zener), Self-Contained90-130 V90-130 AC Volts8 3/4 in
714B503A10KC-261AC Volts, Expanded Scale (Zener), Self-Contained100-140 V100-140 AC Volts8 3/4 in
714B503A12KC-261AC Volts, Expanded Scale (Zener), Self-Contained110-130 V110-130 AC Volts8 3/4 in
714B503A14KC-261AC Volts, Expanded Scale (Zener), Self-Contained105-125 V105-125 AC Volts8 3/4 in
691B230A09KC-261AC Volts, Expanded Scale (Zener), Self-Contained5 V0-5 AC Volts8 3/4 in
691B230A10KC-261AC Volts, Expanded Scale (Zener), Self-Contained110-130 V110-130 AC Volts8 3/4 in
714B320A09KC-261AC Volts, Rectifier, Self-Contained90-130 V90-130 AC Volts8 3/4 in
714B320A11KC-261AC Volts, Rectifier, Self-Contained20 V0-20 AC Volts8 3/4 in
714B320A12KC-261AC Volts, Rectifier, Self-Contained50 V0-50 AC Volts8 3/4 in
714B320A14KC-261AC Volts, Rectifier, Self-Contained150V0-150 AC Volts8 3/4 in
717B216A14KC-241AC Volts, Expanded Scale, High Shock, 400 HZ430-470 V430-470 AC Volts4 1/2 in
671B424A09KC-241AC Volts, Rectifier, Self-Contained, High Shock5 V0-5 AC Volts4 1/2 in
671B424A11KC-241AC Volts, Rectifier, Self-Contained, High Shock20 V0-20 AC Volts4 1/2 in
671B424A12KC-241AC Volts, Rectifier, Self-Contained, High Shock50 V0-50 AC Volts4 1/2 in
671B424A14KC-241AC Volts, Rectifier, Self-Contained, High Shock150V0-150 AC Volts4 1/2 in
714B317A10KC-241AC Volts, Rectifier, Self-Contained10 V0-10 AC Volts4 1/2 in
714B317A13KC-241AC Volts, Rectifier, Self-Contained100 V0-100 AC Volts4 1/2 in
714B317A15KC-241AC Volts, Rectifier, Self-Contained300 V0-300 AC Volts4 1/2 in
714B320A10KC-261AC Volts, Rectifier, Self-Contained10 V0-10 AC Volts8 3/4 in
