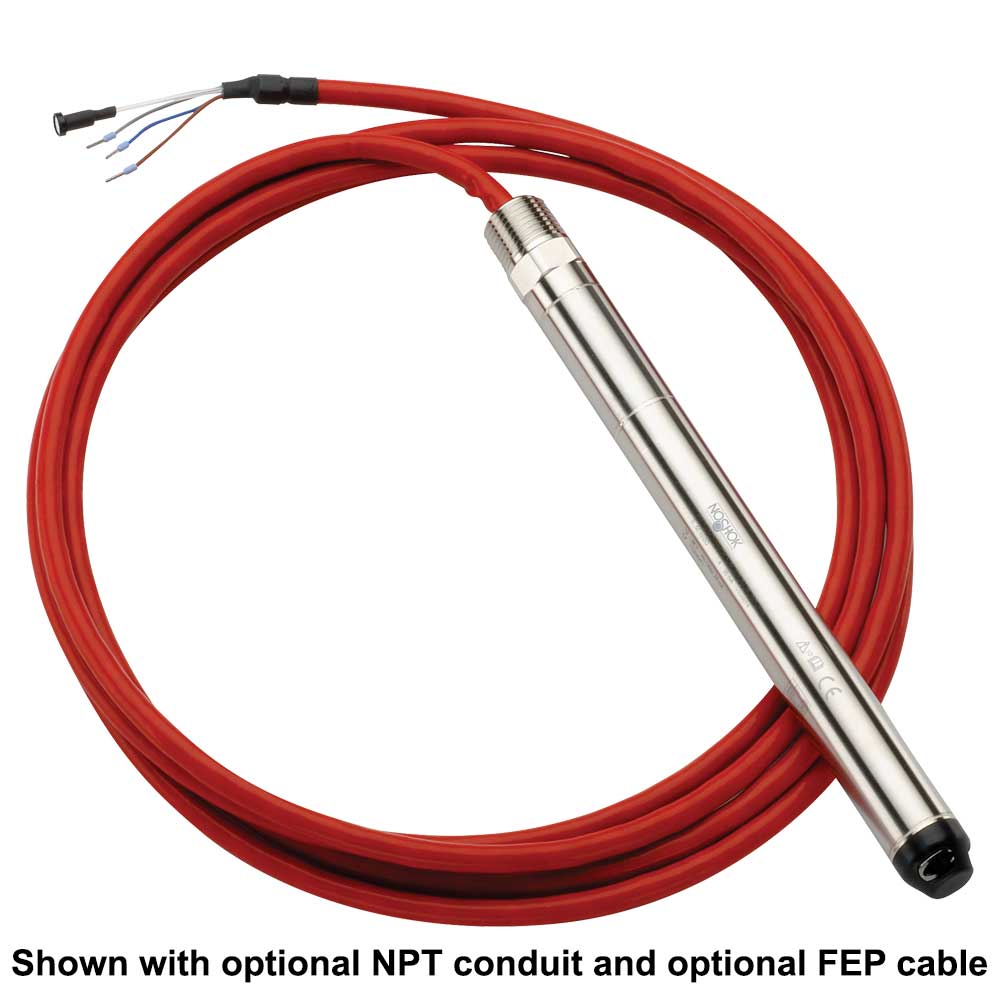

611 Series Small Submersible Level Transmitters- Noshok

Description

The 611 Series are Small Diameter Submersible Level Transmitters and Transducers.  They are highly accurate, shock resistant and extremely stable over a long period of time. The 611 Series is ideal for liquid level measurement in well heads, groundwater monitoring, open bodies of water, sewage pumping stations, setting ponds and rainwater basins.

  • Hydrostatic level measurement with optional temperature measurement
  • Small diameter for applications including bore holes and wells
  • Low power output signals for battery-powered applications
  • 316 Stainless Steel, PVDF and Polyurethane wetted parts
  • 5:1 turndown using optional HART® signal
  • CE compliant to suppress RFI, EMI and ESD

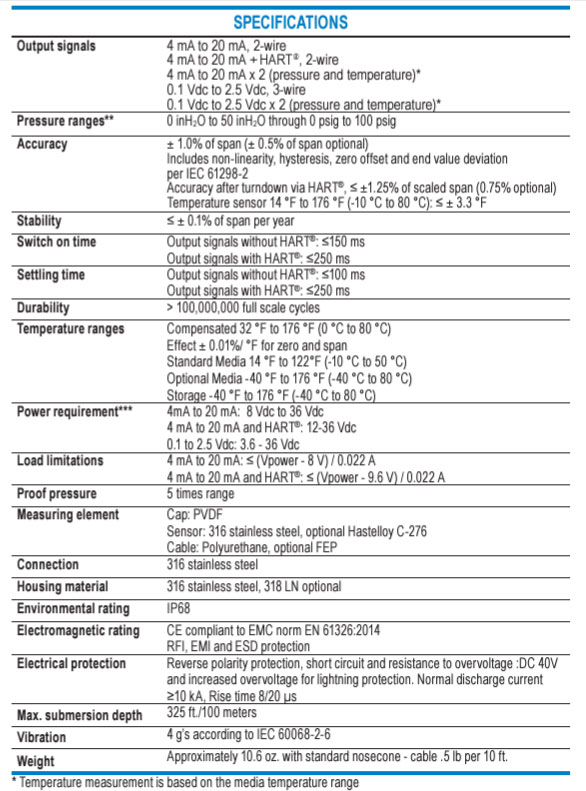

Noshok_611_Datasheet

Configure Product

Noshok 611 Series Level Transmitters

Reset Form
View Result
Model
Range
Accuracy
Output Signal
4-20mA required above 300 psig
Process Connection
Electrical Cable
Cable length
Indicate length in feet
Options
Product #:
