5000V Digital/Analog Megohmmeter Models 5050, 5060 & 5070 – AEMC

Description

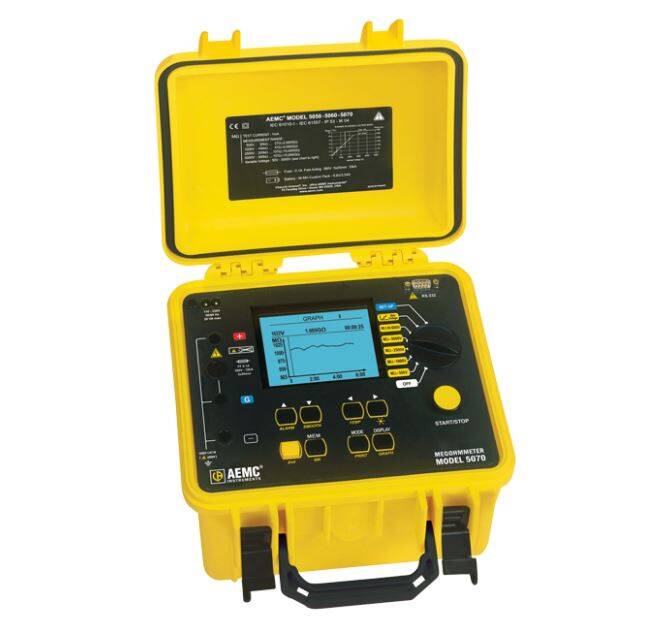

click to view larger image

Digital, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, Auto DAR/PI/DD

Displays test voltage, insulation resistance, and leakage current during the test; and capacitance and discharge voltage present at the test leads at the conclusion of the test. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI).

Features

• True MegohmMeter®
• Test voltage combinations of 500V, 1000V, 2500V and 5000V
• Insulation measurements from 30kohm to 10,000Gohm (10Tohm)
• Selectable and programmable test voltage (40 to 5100V)
• Automatic calculation of DAR, PI and DD ratios
• Direct measurement and display of Capacitance and Leakage Current
• Display resistance, test voltage and run time
• Programmable test run times and PI ratio times
• Smooth and Alarm functions
• Automatic test inhibition (if live sample >25V)
• Automatic discharge and display of discharge voltage
• Large dual display with time, voltage and measurements shown (Models 5050 and 5060)
• Graphic and digital display of test voltage, resistance and more (Model 5070)
• Bright blue electroluminescent backlight
• Programmable test voltage lock-out
• Programmable alarm setting
• Auto power-down when not in use
• AC or DC powered with rechargeable NiMH batteries
• Rugged, weatherproof field case
• Designed and built to IEC safety standards
• EN 61010-1, 1000V Cat. III
• CE Approved, Double Insulation

DataView® Software for Models 1060, 5060 & 5070

• Configure all functions and run tests from your PC
• Retrieve and display data in real time
• Retrieve data from memory in real time
• Display plots & print reports

Catalog Page 157     5050-5060 Datasheet       5070 Datasheet
