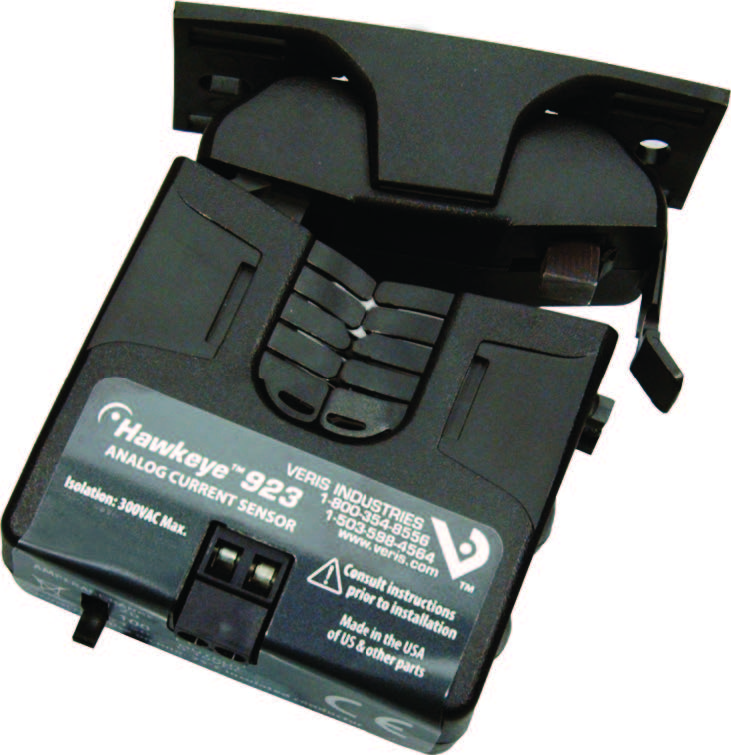

Item #H923, Veris AC Current Transducers
Analog output current sensors providing a signal corresponding to actual amperage draw of the monitored load. Provided in a wide range of amperages and available with convenient slide switch range selection.
- Solid & split core styles
- Ranges from 10 to 2400A
- DC V & 4-20 mA outputs
- Self or loop powered
- Multi-range models for versatility (switch selectable range)
- Removable & adjustable bracket for installation flexibility
- 100% solid state, no moving parts to fail
- 5 year warranty
Specifications
Range (AC Amperes)
20/100/150
Output (DC)
0-10V
Housing
Split-Core
Window (in.)
0.8
Range Select
switch
Size (in)
3.1X2.8X1.4
Mounting
removable bracket, 2.5 mtg ctr
