Item #EX/407766, Datalogging Sound Level Meter - HD600 - Extech

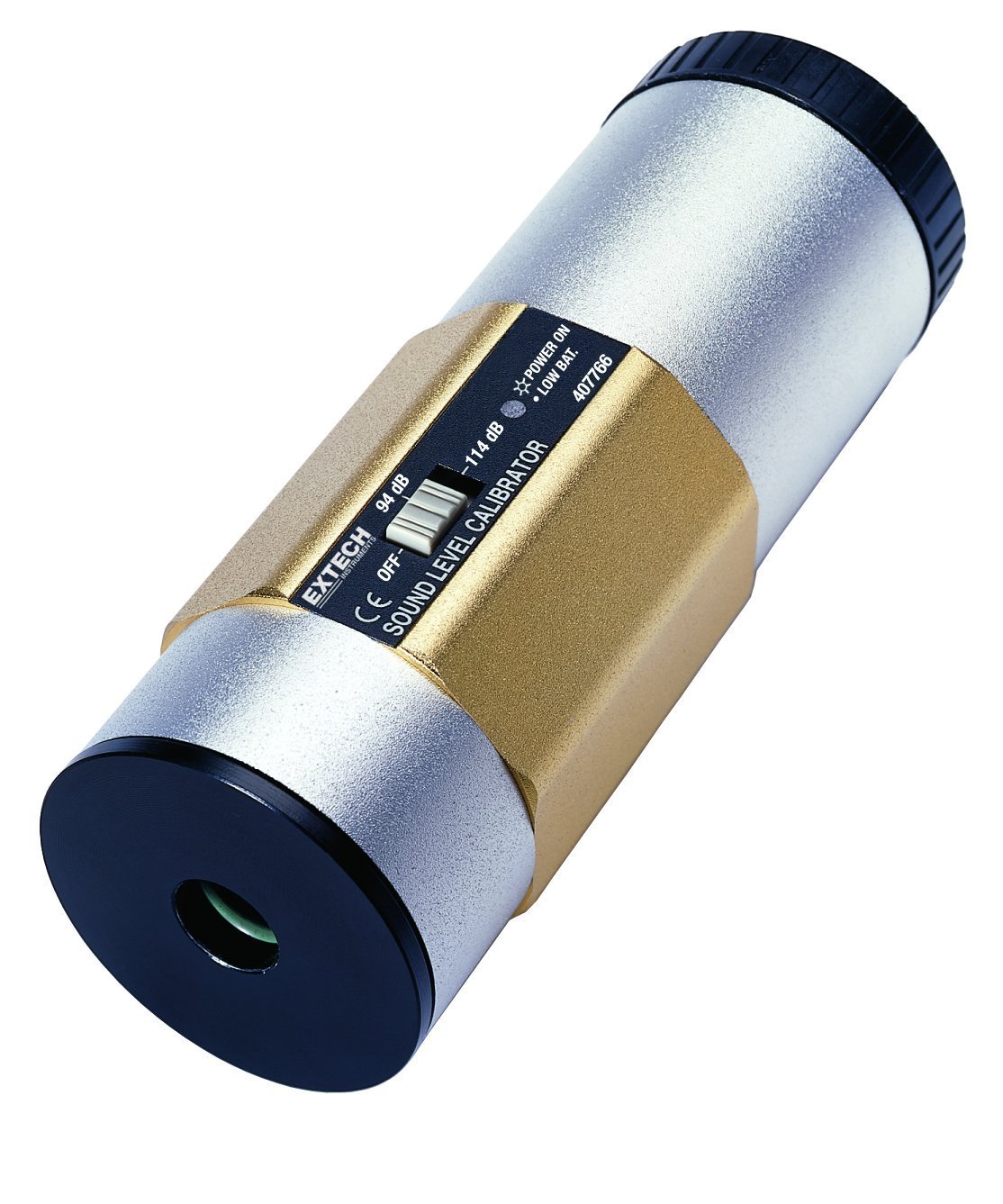

407766: 94/114dB Sound Calibrator 1kHz Professional Calibrator for 0.5″ or 1.0″ Microphones

The 407744 sound level calibrator generates a 94dB sine wave at 1 KHz. The 407766 generates a 94dB and a 114dB sine wave at 1kHz. When a microphone from a sound level meter is inserted into the calibrator, the sound level meter picks up the signal and displays the signal in dB (decibel) units. The sound level meter should be adjusted (if necessary) to match the calibrator’s output signal as closely as possible

Features:

Calibrates and verifies Sound Level Meter operation
LED indicator lights up when power is on Level position to select 94dB or 114dB\
For use on Sound Level Meters with 0.5″ or 1.0″ microphones
Durable die-cast, aluminum housing
1kHz sine wave at 94dB/114dB is generated to an accuracy of 5% (frequency) and ±0.8dB
